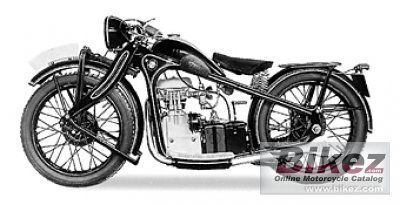

1934 BMW R2 Series 3 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1934 BMW R2 Series 3.

Basic Specs

Year1934
MakeBMW
ModelBMW R2 Series 3
Cost

Engine

Displacement198.00 ccm (12.08 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression6.7:1
Bore/Stroke63.0 x 64.0 mm (2.5 x 2.5 inches)
Valves/Cylinder
FuelingCarburettor. Amal 18mm
IgnitionBattery
Exhaust
LubricationWet sump
CoolingAir

Drivetrain

Gearbox3-speed
Final DriveShaft drive (cardan)
ClutchDry-single plate-cable operated
Driveline

Performance

Horespower8.02 HP (5.9 kW)
Torque
Top Speed95.0 km/h (59.0 mph)

Fuel Economy & Polution

Fuel Consumption2.75 litres/100 km (36.4 km/l or 85.53 mpg)
Fuel Capacity11.00 litres (2.91 gallons)
Emissions63.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypePressed steel duplex
Rake
Trail
Front SuspensionCartridge
Front Travel
Rear SuspensionRigid
Rear Travel
SeatSolo seat with springs
Seat Height
Alt. Seat Height
Total Height950 mm (37.4 inches)
Total Length1,950 mm (76.8 inches)
Total Width850 mm (33.5 inches)
Ground Clearance
Wheelbase1,303 mm (51.3 inches)
Dry Weight
Wet Weight130.0 kg (286.6 pounds)

Wheels & Brakes

Front Tire/Tyre2.99-25.00
Rear Tire/Tyre2.99-25.00
Front BrakesExpanding brake (drum brake)
Front Brake Diameter180 mm (7.1 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter180 mm (7.1 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW R2 Series 3. This Allround model is powered by a Single cylinder, four-stroke engine with 198.00 ccm (12.08 cubic inches) of actual displacement before 6.7:1 compression. Fueling is metered via Carburettor. Amal 18mm allowing this machine to produce its 8.02 HP (5.9 kW) horsepower and torque. According to our records engine heat of the BMW R2 Series 3 is moderated by Air. You'll need to get familiar with the 3-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 2.99-25.00 and the rear is 2.99-25.00 . The entire package is supported by the frame, Pressed steel duplex. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The BMW R2 Series 3 was launched in 1934, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
