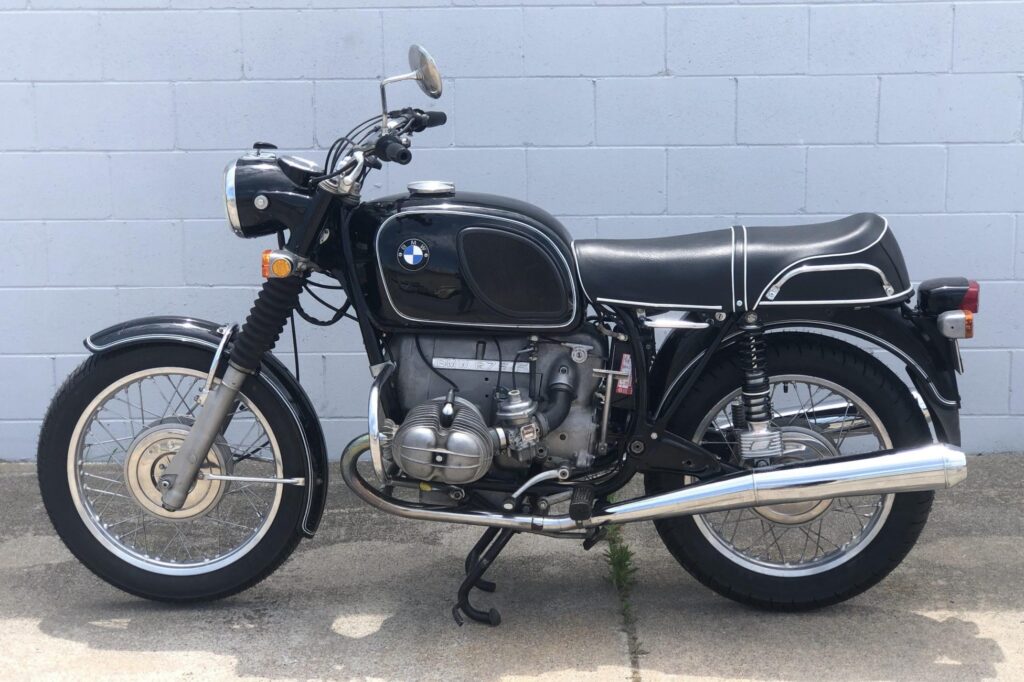

1969 BMW R75 5 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1969 BMW R75 5.

Basic Specs

Year1969
MakeBMW
ModelBMW R75 5
TypeSport
Cost

Engine

Displacement745.00 ccm (45.46 cubic inches)
TypeBing
DetailsTwo cylinder boxer, four-stroke
Max RPM
Compression9.1:1
Bore/Stroke82.0 x 66.0 mm (3.2 x 2.6 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
LubricationWet sump
CoolingAir

Drivetrain

Gearbox
Final DriveShaft drive (cardan)
ClutchDry-single plate-cable operated
Driveline

Performance

Horespower60.00 HP (43.8 kW)
Torque60.00 Nm (6.1 kgf-m or 44.3 ft.lbs)
Top Speed175.0 km/h (108.7 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity24.00 litres (6.34 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionCartride
Front Travel
Rear SuspensionTwin shock-swingarm
Rear Travel
Seat
Seat Height850 mm (33.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,040 mm (40.9 inches)
Total Length2,150 mm (84.6 inches)
Total Width852 mm (33.5 inches)
Ground Clearance165 mm (6.5 inches)
Wheelbase
Dry Weight
Wet Weight

Wheels & Brakes

Front Tire/Tyre3.27-19
Rear Tire/Tyre4.02-18
Front BrakesExpanding brake (drum brake). Twin
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the BMW R75 5. This Sport model is powered by a Bing Two cylinder boxer, four-stroke engine with 745.00 ccm (45.46 cubic inches) of actual displacement before 9.1:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 60.00 HP (43.8 kW) horsepower and 60.00 Nm (6.1 kgf-m or 44.3 ft.lbs) torque. According to our records engine heat of the BMW R75 5 is moderated by Air. You'll need to get familiar with the transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 3.27-19 and the rear is 4.02-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake). Twin front brakes and Expanding brake (drum brake) rear brakes. The BMW R75 5 was launched in 1969, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
