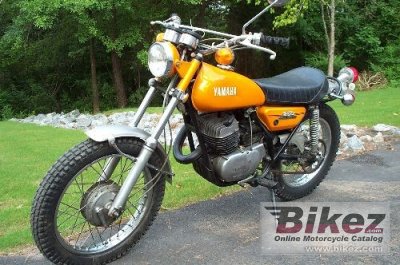

1972 Yamaha DT 250 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1972 Yamaha DT 250.

Basic Specs

Year1972
MakeYamaha
ModelYamaha DT 250
Cost

Engine

Displacement246.00 ccm (15.01 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression6.4:1
Bore/Stroke70.0 x 64.0 mm (2.8 x 2.5 inches)
Valves/Cylinder
FuelingCarburettor. VM26SH Mikuni
Ignitioncontact breaker point
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutchwet plate
Driveline

Performance

Horespower23.00 HP (16.8 kW)
Torque17.50 Nm (1.8 kgf-m or 12.9 ft.lbs)
Top Speed112.7 km/h (70.0 mph)

Fuel Economy & Polution

Fuel Consumption2.50 litres/100 km (40.0 km/l or 94.09 mpg)
Fuel Capacity9.46 litres (2.50 gallons)
Emissions58.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight111.1 kg (245.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre3.25-19
Rear Tire/Tyre4.00-18
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Yamaha DT 250. This Enduro / offroad model is powered by a Single cylinder, two-stroke engine with 246.00 ccm (15.01 cubic inches) of actual displacement before 6.4:1 compression. Fueling is metered via Carburettor. VM26SH Mikuni allowing this machine to produce its 23.00 HP (16.8 kW) horsepower and 17.50 Nm (1.8 kgf-m or 12.9 ft.lbs) torque. According to our records engine heat of the Yamaha DT 250 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 3.25-19 and the rear is 4.00-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Yamaha DT 250 was launched in 1972, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
