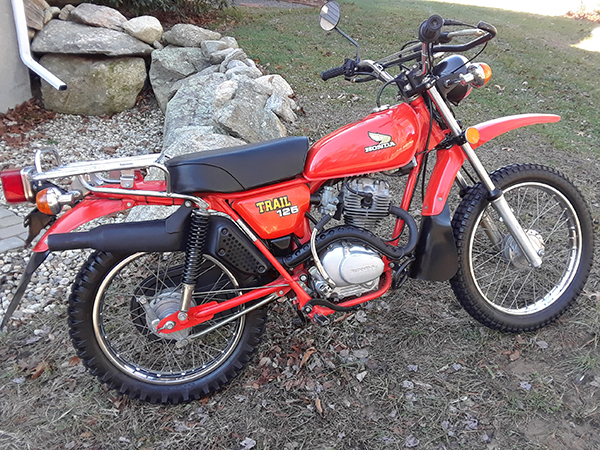

1977 Honda CT 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1977 Honda CT 125.

Basic Specs

Year1977
MakeHonda
ModelHonda CT 125
Cost

Engine

Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression8.0:1
Bore/Stroke56.5 x 49.5 mm (2.2 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionKick
Exhaustsingle black exaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchManual
Driveline

Performance

Horespower
Torque
Top Speed91.7 km/h (57.0 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity6.05 litres (1.60 gallons)
Emissions

Chassis

Frame Type
Rake61.3°
Trail110 mm (4.3 inches)
Front SuspensionInverted Forks
Front Travel
Rear SuspensionTwin Rear Spring
Rear Travel
Seat
Seat Height813 mm (32.0 inches) If adjustable, lowest setting.
Alt. Seat Height813 mm (32.0 inches) If adjustable, highest setting.
Total Height1,100 mm (43.3 inches)
Total Length2,035 mm (80.1 inches)
Total Width900 mm (35.4 inches)
Ground Clearance
Wheelbase1,295 mm (51.0 inches)
Dry Weight108.0 kg (238.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre3/19-4PR
Rear Tire/Tyre4/18-4PR
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda CT 125. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 124.00 ccm (7.57 cubic inches) of actual displacement before 8.0:1 compression. Fueling is metered via Carburettor allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda CT 125 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 3/19-4PR and the rear is 4/18-4PR . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Honda CT 125 was launched in 1977, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

This is an extremely rare bike
