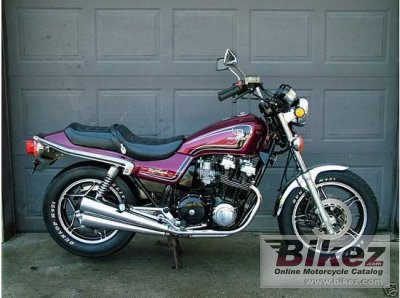

1983 Honda CB 750 SC Nighthawk Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1983 Honda CB 750 SC Nighthawk.

Basic Specs

Year1983
MakeHonda
ModelHonda CB 750 SC Nighthawk
Cost

Engine

Displacement749.00 ccm (45.70 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM9500
Compression9.0:1
Bore/Stroke61.0 x 61.0 mm (2.4 x 2.4 inches)
Valves/Cylinder4
FuelingCarburettor. 4 keihin 30 mm
Ignition
Exhaustfour into four
Lubricationwet sump
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutchwet plate
Driveline

Performance

Horespower70.00 HP (51.1 kW)
Torque
Top Speed210.8 km/h (131.0 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame Typedual downtube, full cradle, mild steel
Rake29.5°
Trail119 mm (4.7 inches)
Front Suspensionleading axle coil,air spring fork,anti dive yielding
Front Travel
Rear Suspension
Rear Travel155 mm (6.1 inches)
Seat
Seat Height
Alt. Seat Height
Total Height792 mm (31.2 inches)
Total Length2,184 mm (86.0 inches)
Total Width800 mm (31.5 inches)
Ground Clearance163 mm (6.4 inches)
Wheelbase1,544 mm (60.8 inches)
Dry Weight
Wet Weight259.9 kg (573.0 pounds)

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesDouble disc. 2 piston calipers
Front Brake Diameter
Rear BrakesExpanding brake (drum brake). rod actuated drum
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda CB 750 SC Nighthawk. This Custom / cruiser model is powered by a In-line four, four-stroke engine with 749.00 ccm (45.70 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Carburettor. 4 keihin 30 mm allowing this machine to produce its 70.00 HP (51.1 kW) horsepower and torque. According to our records engine heat of the Honda CB 750 SC Nighthawk is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, dual downtube, full cradle, mild steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 2 piston calipers front brakes and Expanding brake (drum brake). rod actuated drum rear brakes. The Honda CB 750 SC Nighthawk was launched in 1983, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
