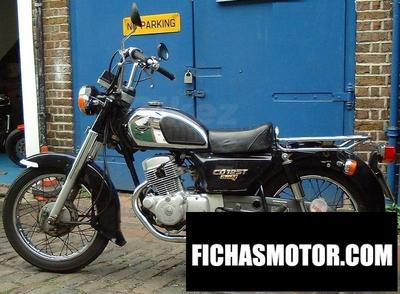

1984 Honda CD200T Benly Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1984 Honda CD200T Benly.

Basic Specs

Year1984
MakeHonda
ModelHonda CD200T Benly
Cost

Engine

Displacement194.00 ccm (11.84 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression8.8:1
Bore/Stroke53.0 x 44.0 mm (2.1 x 1.7 inches)
Valves/Cylinder2
FuelingCarburettor. Keihin VB15A
IgnitionCDI
ExhaustTwin one piece chrome pipes
LubricationWet sump
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveChain
ClutchWet multiplate
Driveline

Performance

Horespower16.00 HP (11.7 kW)
Torque
Top Speed120.7 km/h (75.0 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.50 litres (2.77 gallons)
Emissions

Chassis

Frame TypeOpen diamond, tubular steel, engine is a stressed member
Rake
Trail
Front SuspensionOil dampened telescopic
Front Travel115 mm (4.5 inches)
Rear SuspensionTwin shock, oil dampened
Rear Travel64 mm (2.5 inches)
Seat
Seat Height744 mm (29.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,105 mm (43.5 inches)
Total Length1,990 mm (78.3 inches)
Total Width845 mm (33.3 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1,280 mm (50.4 inches)
Dry Weight122.0 kg (269.0 pounds)
Wet Weight140.0 kg (308.6 pounds)

Wheels & Brakes

Front Tire/Tyre3/17-4PR
Rear Tire/Tyre3/17-6PR
Front BrakesExpanding brake (drum brake). Single leading shoe
Front Brake Diameter140 mm (5.5 inches)
Rear BrakesExpanding brake (drum brake). Single leading shoe
Rear Brake Diameter130 mm (5.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda CD200T Benly. This Classic model is powered by a Twin, four-stroke engine with 194.00 ccm (11.84 cubic inches) of actual displacement before 8.8:1 compression. Fueling is metered via Carburettor. Keihin VB15A allowing this machine to produce its 16.00 HP (11.7 kW) horsepower and torque. According to our records engine heat of the Honda CD200T Benly is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 3/17-4PR and the rear is 3/17-6PR . The entire package is supported by the frame, Open diamond, tubular steel, engine is a stressed member. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake). Single leading shoe front brakes and Expanding brake (drum brake). Single leading shoe rear brakes. The Honda CD200T Benly was launched in 1984, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Very reliable, usually starts on the 1st kick or prod of the starter. So long as you change the oil regulary these bikes are virtually bulletproof
