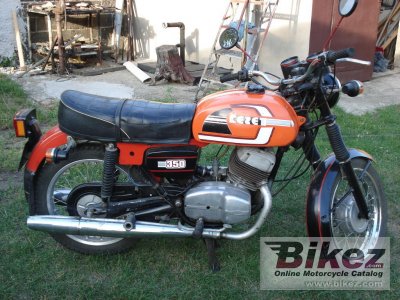

1985 CZ 350 Typ 472.6 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1985 CZ 350 Typ 472.6.

Basic Specs

Year1985
MakeCZ
ModelCZ 350 Typ 472.6
Cost

Engine

Displacement350.00 ccm (21.36 cubic inches)
Type
DetailsTwin, two-stroke
Max RPM6500
Compression9.2:1
Bore/Stroke
Valves/Cylinder
FuelingCarburettor. Jikov
IgnitionMechanical
ExhaustTwo reactive scilencer chrome pipes (one per cyl.)
Lubrication2-stroke
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveChain
ClutchWet multyplate with automatic gearchange engagement
Driveline

Performance

Horespower22.00 HP (16.1 kW)
Torque
Top Speed135.0 km/h (83.9 mph)

Fuel Economy & Polution

Fuel Consumption4.00 litres/100 km (25.0 km/l or 58.81 mpg)
Fuel Capacity18.00 litres (4.76 gallons)
Emissions92.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeSteel pipe closed type
Rake
Trail
Front SuspensionInverted forks
Front Travel
Rear SuspensionDualshock with swingarm
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight180.0 kg (396.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre#REF!
Rear Tire/Tyre#REF!
Front BrakesExpanding brake (drum brake). Two-side expantion
Front Brake Diameter
Rear BrakesExpanding brake (drum brake). One-side expantion
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the CZ 350 Typ 472.6. This Touring model is powered by a Twin, two-stroke engine with 350.00 ccm (21.36 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Carburettor. Jikov allowing this machine to produce its 22.00 HP (16.1 kW) horsepower and torque. According to our records engine heat of the CZ 350 Typ 472.6 is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is #REF! and the rear is #REF!. The entire package is supported by the frame, Steel pipe closed type. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake). Two-side expantion front brakes and Expanding brake (drum brake). One-side expantion rear brakes. The CZ 350 Typ 472.6 was launched in 1985, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

A very prolific, multifunctional and sturdy bike of the eastern block.It was also produced in vast numbers in China and India. In fact some speculate it is the most prolific bike ever made. It owes its sucsess to its simplicity, cheapness and multifunctionality. It has a simple, but reasonably reliable two cilinder, two stroke engine. Has a sidecar option. Altho simple the bike is far from primitive. It has good, modern looks, for its time, it is also fairly fueleficient. This bike was intended to fill the most important role in the Warsaw-pact market-the large engine long-distance multifunctional platform (called nowadays touring, plus a bit of offroad and heavy hauling capabilities). The CZ 350 has very simple, altho fairly frequent maintenance requirements, witch if conducted properly make it virtualy imposible for the bike to give you any seruous trouble. The engine has a short life-expectancy, witch is originaly counterbalanced by the avaylability and lo-price of spare engines. It is also intended for someone to be able to change, or repair the engine in his owne backyard with only a screwdriver, wrenches and minimal expirience. The platforme is a successor of previous CZ 350 engines from the 60´s. In fact it has little more in diferant with them than looks. The original 350 of that generation-Type 472.1 came out in the 70´s. All throu to Typ 472.6, nothing changes exept suspention, an added RPM meter, a 12V alternator instead of the 6V dinamlo and some sattle, tank and taillight details. It was in production untill 1990. Altho outdated in Europe, this model is still very popular, or at least numerous in India, China and Mongoli, being used as a workhorse in rural areas, or as fast transport in cityes. The Tyo 472.6 only came in two varyations - light red eith black pinstripes or red with white stripes. Curiously the light variant had a different front fender lead for the front brake whire than the dark version.
