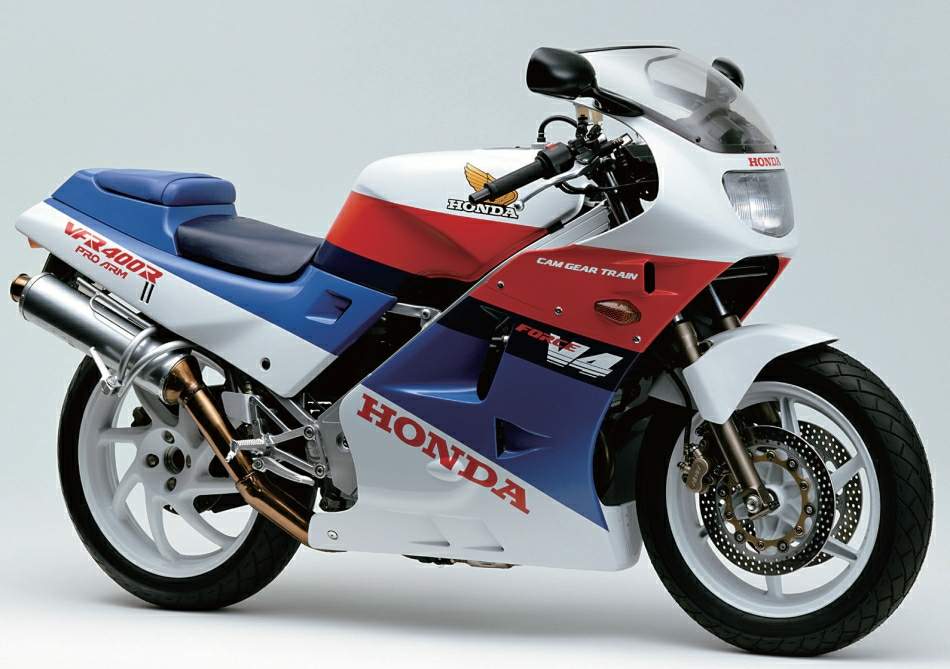

1987 Honda VFR 400 NC24 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1987 Honda VFR 400 NC24.

Basic Specs

Year1987
MakeHonda
ModelHonda VFR 400 NC24
Cost

Engine

Displacement399.00 ccm (24.35 cubic inches)
Type
DetailsV4, four-stroke
Max RPM15000
Compression11.3:1
Bore/Stroke55.0 x 32.0 mm (2.2 x 1.3 inches)
Valves/Cylinder4
FuelingCarburettor. 4 x 29mm Keihin
IgnitionTransistor
Exhaust4/2/2001
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet Plate
Driveline

Performance

Horespower59.00 HP (43.1 kW)
Torque39.00 Nm (4.0 kgf-m or 28.8 ft.lbs)
Top Speed210.0 km/h (130.5 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity16.00 litres (4.23 gallons)
Emissions

Chassis

Frame TypeAluminium Twin Spar Frame
Rake
Trail
Front Suspension41mm Telescopic, coil spring, oil damped, rebound damping force air adjustable (8psi - 11psi)
Front Travel
Rear SuspensionPro-Arm Mono shock, fully adjustable
Rear Travel
Seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,345 mm (53.0 inches)
Dry Weight165.0 kg (363.8 pounds)
Wet Weight193.0 kg (425.5 pounds)

Wheels & Brakes

Front Tire/Tyre100/90-H16
Rear Tire/Tyre130/70-H18
Front BrakesDouble disc. Nissin 2 pot caliper
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc. Nissin 1 pot caliper
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda VFR 400 NC24. This Sport touring model is powered by a V4, four-stroke engine with 399.00 ccm (24.35 cubic inches) of actual displacement before 11.3:1 compression. Fueling is metered via Carburettor. 4 x 29mm Keihin allowing this machine to produce its 59.00 HP (43.1 kW) horsepower and 39.00 Nm (4.0 kgf-m or 28.8 ft.lbs) torque. According to our records engine heat of the Honda VFR 400 NC24 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 100/90-H16 and the rear is 130/70-H18 . The entire package is supported by the frame, Aluminium Twin Spar Frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Nissin 2 pot caliper front brakes and Single disc. Nissin 1 pot caliper rear brakes. The Honda VFR 400 NC24 was launched in 1987, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
