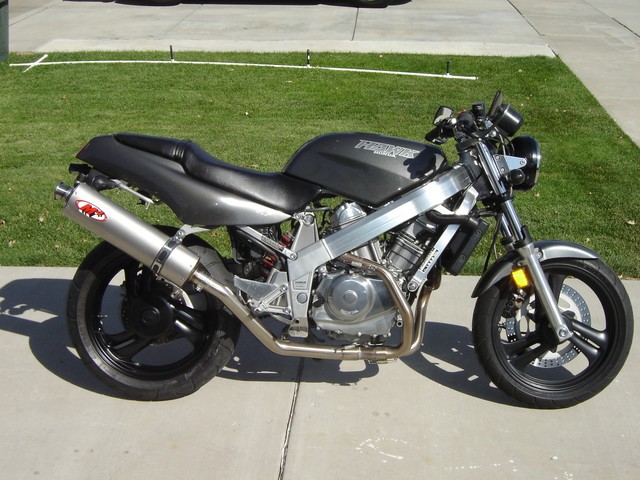

1988 Honda NT 650 Hawk Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1988 Honda NT 650 Hawk.

Basic Specs

Year1988
MakeHonda
ModelHonda NT 650 Hawk
CostUS$ 3995. Prices depend on country, taxes, accessories, etc.

Engine

Displacement647.00 ccm (39.48 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke79.0 x 66.0 mm (3.1 x 2.6 inches)
Valves/Cylinder3
FuelingCarburettor. 2x36.5mm Keihin CV
IgnitionDigitalized full transistor
ExhaustTwo into one
LubricationWet sump, pressure feed
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet Multiplate
Driveline

Performance

Horespower
Torque
Top Speed185.1 km/h (115.0 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.00 litres (3.17 gallons)
Emissions

Chassis

Frame TypeAluminum with ELF single sided swingarm
Rake28.0°
Trail5 mm (0.2 inches)
Front SuspensionShowa non-adjustable 41mm
Front Travel140 mm (5.5 inches)
Rear SuspensionShowa adjustable pre-load
Rear Travel119 mm (4.7 inches)
Seat
Seat Height772 mm (30.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1 mm (0.0 inches)
Total Length2 mm (0.1 inches)
Total Width676 mm (26.6 inches)
Ground Clearance155 mm (6.1 inches)
Wheelbase1,430 mm (56.3 inches)
Dry Weight178.3 kg (393.0 pounds)
Wet Weight186.9 kg (412.0 pounds)

Wheels & Brakes

Front Tire/Tyre110/80-17
Rear Tire/Tyre150/70-17
Front BrakesSingle disc
Front Brake Diameter315 mm (12.4 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda NT 650 Hawk. This Naked bike model is powered by a V2, four-stroke engine with 647.00 ccm (39.48 cubic inches) of actual displacement before 9.4:1 compression. Fueling is metered via Carburettor. 2x36.5mm Keihin CV allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda NT 650 Hawk is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/80-17 and the rear is 150/70-17 . The entire package is supported by the frame, Aluminum with ELF single sided swingarm. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Honda NT 650 Hawk was launched in 1988, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

A cult classic bike. Often raced, always leaves a grin on your face.
