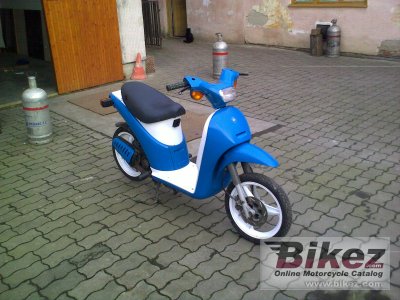

These are the known mechanical and performance specifications for your 1992 Piaggio Free 50.
Basic Specs
Engine
Displacement49.40 ccm (3.01 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM8500
Compression13.7:1
Bore/Stroke
Valves/Cylinder
FuelingCarburettor. Dell´Orto PHVA 12
Ignition
Exhaust
Lubrication
CoolingAir
Performance
Horespower3.75 HP (2.7 kW)
Torque
Top Speed80.0 km/h (49.7 mph)
Fuel Economy & Polution
Fuel Consumption1.30 litres/100 km (76.9 km/l or 180.94 mpg)
Fuel Capacity5.00 litres (1.32 gallons)
Emissions30.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake
Trail
Front SuspensionOil forks
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight68.0 kg (149.9 pounds)
Wet Weight72.0 kg (158.7 pounds)
Wheels & Brakes
Front Tire/Tyre80/80-1443
Rear Tire/Tyre80/80-1443
Front BrakesExpanding brake (drum brake)
Front Brake Diameter60 mm (2.4 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter60 mm (2.4 inches)
Wheels
