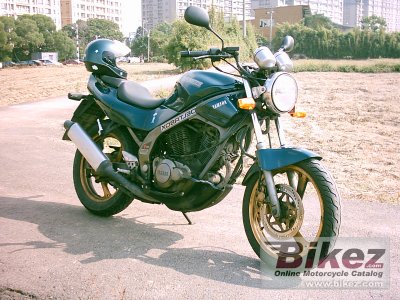

1992 Yamaha FZ 150 N Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1992 Yamaha FZ 150 N.

Basic Specs

Year1992
MakeYamaha
ModelYamaha FZ 150 N
CostUS$ 3200. Prices depend on country, taxes, accessories, etc.

Engine

Displacement149.00 ccm (9.09 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM12000
Compression10.7:1
Bore/Stroke45.0 x 47.0 mm (1.8 x 1.9 inches)
Valves/Cylinder2
FuelingCarburettor. BDS26/2/MIKUNI
Ignition
ExhaustSingle stainless steel pipes
LubricationWet sump
CoolingAir

Drivetrain

Gearbox
Final DriveChain
ClutchWet plate
Driveline

Performance

Horespower17.40 HP (12.7 kW)
Torque
Top Speed130.0 km/h (80.8 mph)

Fuel Economy & Polution

Fuel Consumption3.00 litres/100 km (33.3 km/l or 78.41 mpg)
Fuel Capacity10.00 litres (2.64 gallons)
Emissions69.6 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Typediamond-shaped Aluminum frame
Rake25.5°
Trail89 mm (3.5 inches)
Front Suspension
Front Travel140 mm (5.5 inches)
Rear Suspension
Rear Travel112 mm (4.4 inches)
Seat
Seat Height750 mm (29.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,065 mm (41.9 inches)
Total Length1,965 mm (77.4 inches)
Total Width680 mm (26.8 inches)
Ground Clearance145 mm (5.7 inches)
Wheelbase1,345 mm (53.0 inches)
Dry Weight
Wet Weight148.0 kg (326.3 pounds)

Wheels & Brakes

Front Tire/Tyre90/80-17
Rear Tire/Tyre100/80-17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Yamaha FZ 150 N. This Naked bike model is powered by a Twin, four-stroke engine with 149.00 ccm (9.09 cubic inches) of actual displacement before 10.7:1 compression. Fueling is metered via Carburettor. BDS26/2/MIKUNI allowing this machine to produce its 17.40 HP (12.7 kW) horsepower and torque. According to our records engine heat of the Yamaha FZ 150 N is moderated by Air. You'll need to get familiar with the transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/80-17 and the rear is 100/80-17 . The entire package is supported by the frame, diamond-shaped Aluminum frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Yamaha FZ 150 N was launched in 1992, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Taiwan version of FZ. Engine is transplated from SRV250.
