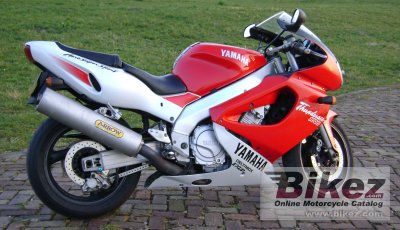

1996 Yamaha YZF1000R Thunderace Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1996 Yamaha YZF1000R Thunderace.

Basic Specs

Year1996
MakeYamaha
ModelYamaha YZF1000R Thunderace
Cost

Engine

Displacement1002.00 ccm (61.14 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke75.5 x 56.0 mm (3.0 x 2.2 inches)
Valves/Cylinder5
FuelingCarburettor. Mikuni BDSR38/4
Ignition
Exhaust4 into 1
LubricationWet Sump
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet Plate
Driveline

Performance

Horespower145.00 HP (105.8 kW)
Torque108.30 Nm (11.0 kgf-m or 79.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption7.12 litres/100 km (14.0 km/l or 33.04 mpg)
Fuel Capacity20.00 litres (5.28 gallons)
Emissions165.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeDelta Box
Rake
Trail
Front Suspension48mm conventional telescopic
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,430 mm (56.3 inches)
Dry Weight198.0 kg (436.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre190/50-17
Front Brakes
Front Brake Diameter
Rear Brakes
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Yamaha YZF1000R Thunderace. This Sport touring model is powered by a In-line four, four-stroke engine with 1002.00 ccm (61.14 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Carburettor. Mikuni BDSR38/4 allowing this machine to produce its 145.00 HP (105.8 kW) horsepower and 108.30 Nm (11.0 kgf-m or 79.9 ft.lbs) torque. According to our records engine heat of the Yamaha YZF1000R Thunderace is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 190/50-17 . The entire package is supported by the frame, Delta Box. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on front brakes and rear brakes. The Yamaha YZF1000R Thunderace was launched in 1996, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
