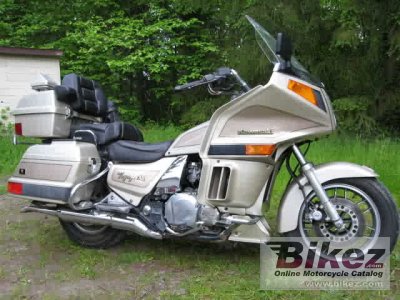

These are the known mechanical and performance specifications for your 1998 Kawasaki Voyager XII.
Basic Specs
Engine
Displacement1196.00 ccm (72.98 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke78.0 x 62.0 mm (3.1 x 2.4 inches)
Valves/Cylinder4
FuelingCarburettor. Kehin ckv 30 (4) constant Velocity, Diaphram type
Ignition12 v Battery and coil, Transistorized Breakerless
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchWet, Multi-disc, Manual
Driveline
Performance
Horespower97.00 HP (70.8 kW)
Torque11.00 Nm (1.1 kgf-m or 8.1 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.22 litres/100 km (19.2 km/l or 45.06 mpg)
Fuel Capacity23.20 litres (6.13 gallons)
Emissions121.1 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake
Trail
Front SuspensionAir/Oil
Front Travel
Rear SuspensionAir/Spring
Rear Travel
Seat
Seat Height755 mm (29.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance140 mm (5.5 inches)
Wheelbase1,620 mm (63.8 inches)
Dry Weight330.0 kg (727.5 pounds)
Wet Weight361.0 kg (795.9 pounds)
Wheels & Brakes
Front Tire/Tyre130/90-16
Rear Tire/Tyre150/90-15
Front BrakesDouble disc. Hydraulic
Front Brake Diameter246 mm (9.7 inches)
Rear BrakesSingle disc. Hydraulic
Rear Brake Diameter256 mm (10.1 inches)
Wheels
Comments
