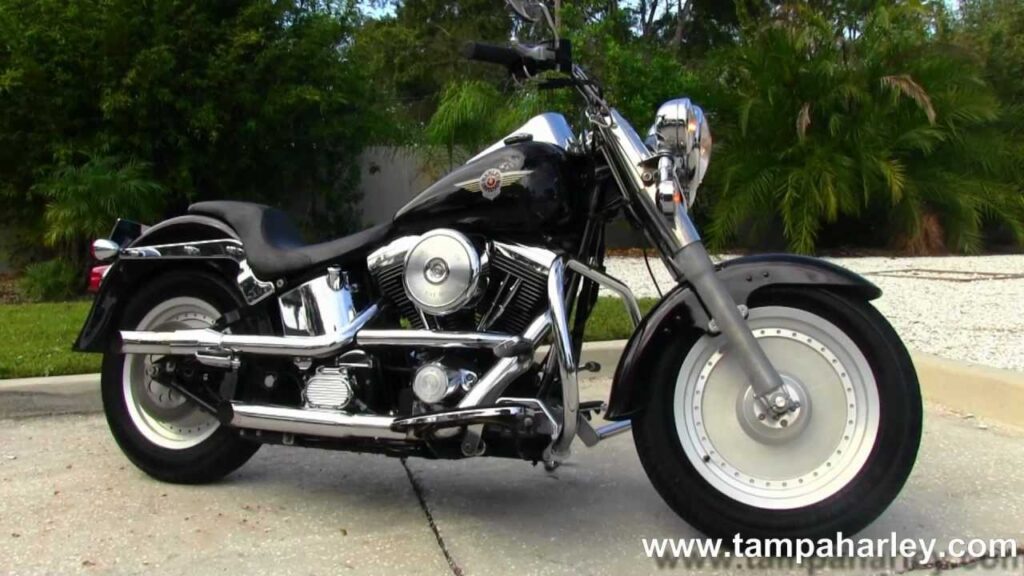

1999 Harley-Davidson FLSTF Fat Boy Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1999 Harley-Davidson FLSTF Fat Boy.

Basic Specs

Year1999
MakeHarley-Davidson
ModelHarley-Davidson FLSTF Fat Boy
Cost

Engine

Displacement1338.00 ccm (81.64 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.5:1
Bore/Stroke88.8 x 108.0 mm (3.5 x 4.3 inches)
Valves/Cylinder2
Fueling
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveBelt
Clutch
Driveline

Performance

Horespower56.00 HP (40.9 kW)
Torque97.00 Nm (9.9 kgf-m or 71.5 ft.lbs)
Top Speed152.0 km/h (94.4 mph)

Fuel Economy & Polution

Fuel Consumption0.58 litres/100 km (172.4 km/l or 405.55 mpg)
Fuel Capacity15.90 litres (4.20 gallons)
Emissions13.5 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake
Trail
Front Suspension
Front Travel129 mm (5.1 inches)
Rear Suspension
Rear Travel103 mm (4.1 inches)
Seat
Seat Height680 mm (26.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,632 mm (64.3 inches)
Dry Weight
Wet Weight305.0 kg (672.4 pounds)

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter291 mm (11.5 inches)
Rear BrakesSingle disc
Rear Brake Diameter291 mm (11.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FLSTF Fat Boy. This Custom / cruiser model is powered by a V2, four-stroke engine with 1338.00 ccm (81.64 cubic inches) of actual displacement before 8.5:1 compression. Fueling is metered via allowing this machine to produce its 56.00 HP (40.9 kW) horsepower and 97.00 Nm (9.9 kgf-m or 71.5 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FLSTF Fat Boy is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Harley-Davidson FLSTF Fat Boy was launched in 1999, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
