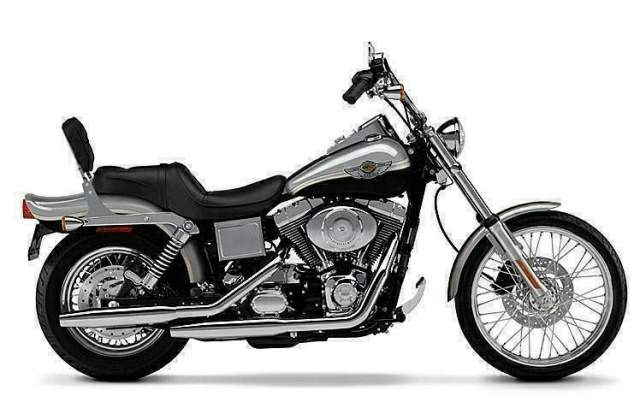

1999 Harley-Davidson FXDWG Dyna Wide Glide Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1999 Harley-Davidson FXDWG Dyna Wide Glide.

Basic Specs

Year1999
MakeHarley-Davidson
ModelHarley-Davidson FXDWG Dyna Wide Glide
Cost

Engine

Displacement1338.00 ccm (81.64 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.5:1
Bore/Stroke88.8 x 108.0 mm (3.5 x 4.3 inches)
Valves/Cylinder2
Fueling
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveBelt
Clutch
Driveline

Performance

Horespower56.00 HP (40.9 kW)
Torque97.00 Nm (9.9 kgf-m or 71.5 ft.lbs)
Top Speed160.0 km/h (99.4 mph)

Fuel Economy & Polution

Fuel Consumption0.59 litres/100 km (169.5 km/l or 398.68 mpg)
Fuel Capacity19.70 litres (5.20 gallons)
Emissions13.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake
Trail
Front Suspension
Front Travel142 mm (5.6 inches)
Rear Suspension
Rear Travel70 mm (2.8 inches)
Seat
Seat Height679 mm (26.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,678 mm (66.1 inches)
Dry Weight
Wet Weight293.0 kg (646.0 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre130/90-16
Front BrakesSingle disc
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter296 mm (11.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FXDWG Dyna Wide Glide. This Custom / cruiser model is powered by a V2, four-stroke engine with 1338.00 ccm (81.64 cubic inches) of actual displacement before 8.5:1 compression. Fueling is metered via allowing this machine to produce its 56.00 HP (40.9 kW) horsepower and 97.00 Nm (9.9 kgf-m or 71.5 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FXDWG Dyna Wide Glide is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 130/90-16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Harley-Davidson FXDWG Dyna Wide Glide was launched in 1999, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
