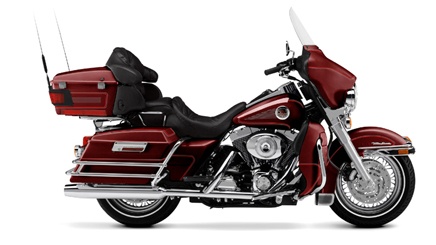

These are the known mechanical and performance specifications for your 2002 Harley-Davidson FLHTCUI Ultra Classic Electra Glide.
Basic Specs
Year2002
MakeHarley-Davidson
ModelHarley-Davidson FLHTCUI Ultra Classic Electra Glide
TypeTouring
Cost
Engine
Displacement1450.00 ccm (88.48 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.8:1
Bore/Stroke95.3 x 101.6 mm (3.8 x 4.0 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir
Performance
Horespower
Torque109.50 Nm (11.2 kgf-m or 80.8 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.90 litres (4.99 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height693 mm (27.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,500 mm (98.4 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,592 mm (62.7 inches)
Dry Weight385.0 kg (848.8 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesDual disc
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc
Rear Brake Diameter292 mm (11.5 inches)
Wheels
