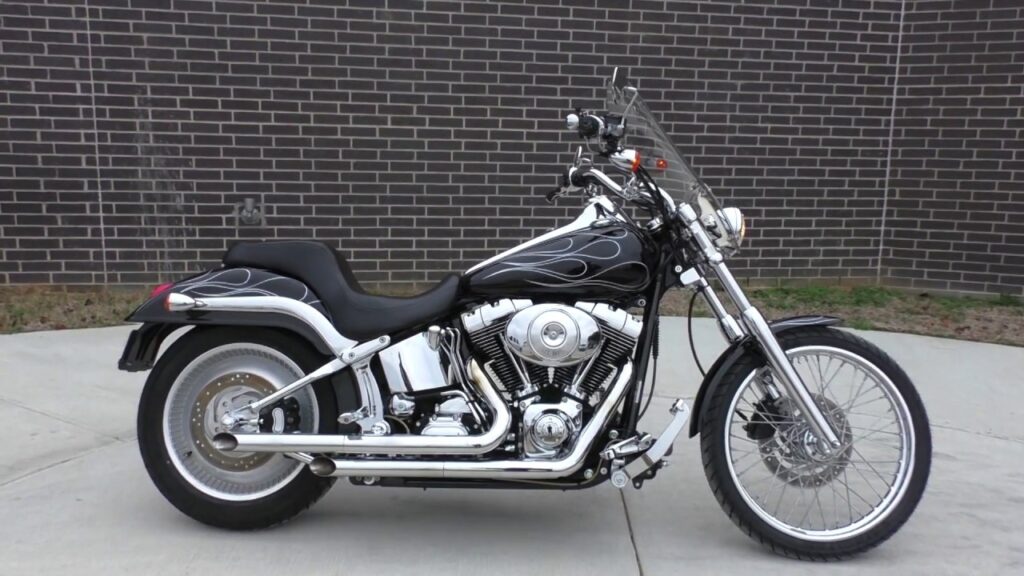

These are the known mechanical and performance specifications for your 2002 Harley-Davidson FXSTD Softail Deuce.
Basic Specs
Engine
Displacement1450.00 ccm (88.48 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.9:1
Bore/Stroke95.3 x 101.6 mm (3.8 x 4.0 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir
Performance
Horespower
Torque106.00 Nm (10.8 kgf-m or 78.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.50 litres (4.89 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height719 mm (28.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,422 mm (95.4 inches)
Total Width
Ground Clearance141 mm (5.5 inches)
Wheelbase1,690 mm (66.5 inches)
Dry Weight292.7 kg (645.3 pounds)
Wet Weight309.6 kg (682.6 pounds)
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc
Rear Brake Diameter292 mm (11.5 inches)
Wheels
Comments
