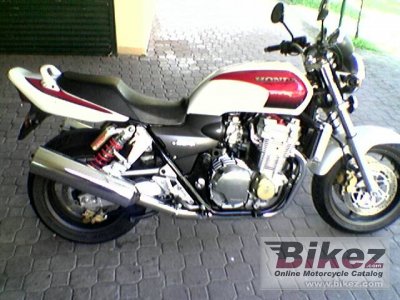

These are the known mechanical and performance specifications for your 2002 Honda CB 1300 Super Four.
Basic Specs
Engine
Displacement1284.00 ccm (78.35 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke78.0 x 67.2 mm (3.1 x 2.6 inches)
Valves/Cylinder4
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid
Performance
Horespower100.00 HP (73.0 kW)
Torque120.00 Nm (12.2 kgf-m or 88.5 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity21.00 litres (5.55 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,165 mm (45.9 inches)
Total Length2,200 mm (86.6 inches)
Total Width780 mm (30.7 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,545 mm (60.8 inches)
Dry Weight246.0 kg (542.3 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre130/70-ZR17 62W
Rear Tire/Tyre190/60-ZR17 78W
Front BrakesDual disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
