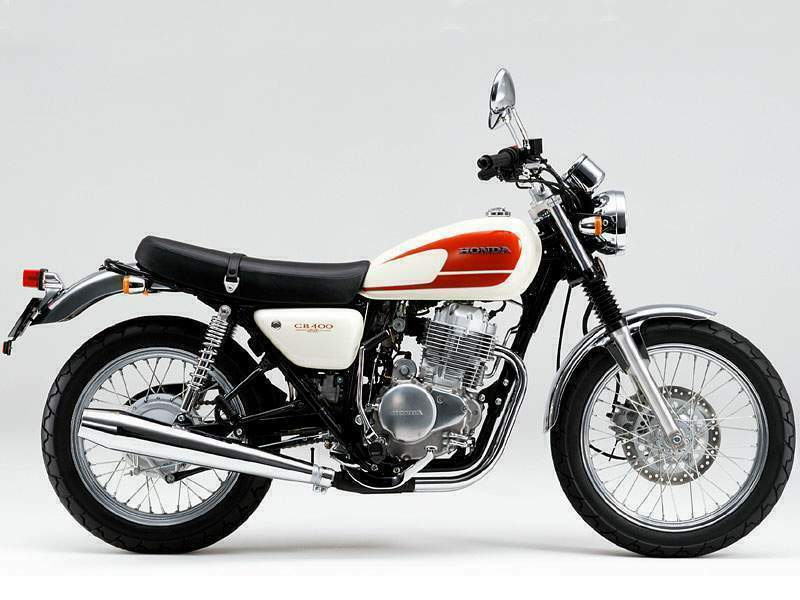

2002 Honda CB 400 SS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2002 Honda CB 400 SS.

Basic Specs

Year2002
MakeHonda
ModelHonda CB 400 SS
Cost

Engine

Displacement397.00 ccm (24.22 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression8.8:1
Bore/Stroke85.0 x 70.0 mm (3.3 x 2.8 inches)
Valves/Cylinder4
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final Drive
Clutch
Driveline

Performance

Horespower29.00 HP (21.2 kW)
Torque31.00 Nm (3.2 kgf-m or 22.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity11.00 litres (2.91 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,125 mm (44.3 inches)
Total Length2,165 mm (85.2 inches)
Total Width780 mm (30.7 inches)
Ground Clearance160 mm (6.3 inches)
Wheelbase1,405 mm (55.3 inches)
Dry Weight139.0 kg (306.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/90-19 M/C 57S
Rear Tire/Tyre110/90-18 M/C 61S
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda CB 400 SS. This Naked bike model is powered by a Single cylinder, four-stroke engine with 397.00 ccm (24.22 cubic inches) of actual displacement before 8.8:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 29.00 HP (21.2 kW) horsepower and 31.00 Nm (3.2 kgf-m or 22.9 ft.lbs) torque. According to our records engine heat of the Honda CB 400 SS is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 100/90-19 M/C 57S and the rear is 110/90-18 M/C 61S . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake rear brakes. The Honda CB 400 SS was launched in 2002, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
