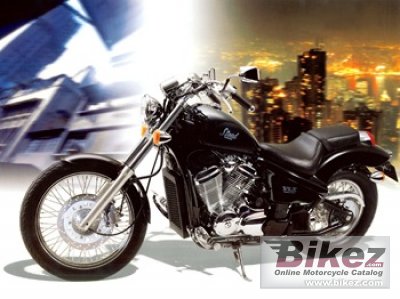

These are the known mechanical and performance specifications for your 2002 Honda Steed 400.
Basic Specs
Engine
Displacement398.00 ccm (24.29 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.3:1
Bore/Stroke64.0 x 62.0 mm (2.5 x 2.4 inches)
Valves/Cylinder3
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid
Performance
Horespower31.00 HP (22.6 kW)
Torque33.00 Nm (3.4 kgf-m or 24.3 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity11.00 litres (2.91 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height670 mm (26.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,120 mm (44.1 inches)
Total Length2,310 mm (90.9 inches)
Total Width890 mm (35.0 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,600 mm (63.0 inches)
Dry Weight203.0 kg (447.5 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre100/90-19 57S
Rear Tire/Tyre170/80-15 M/C 77S
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake
Rear Brake Diameter
Wheels
