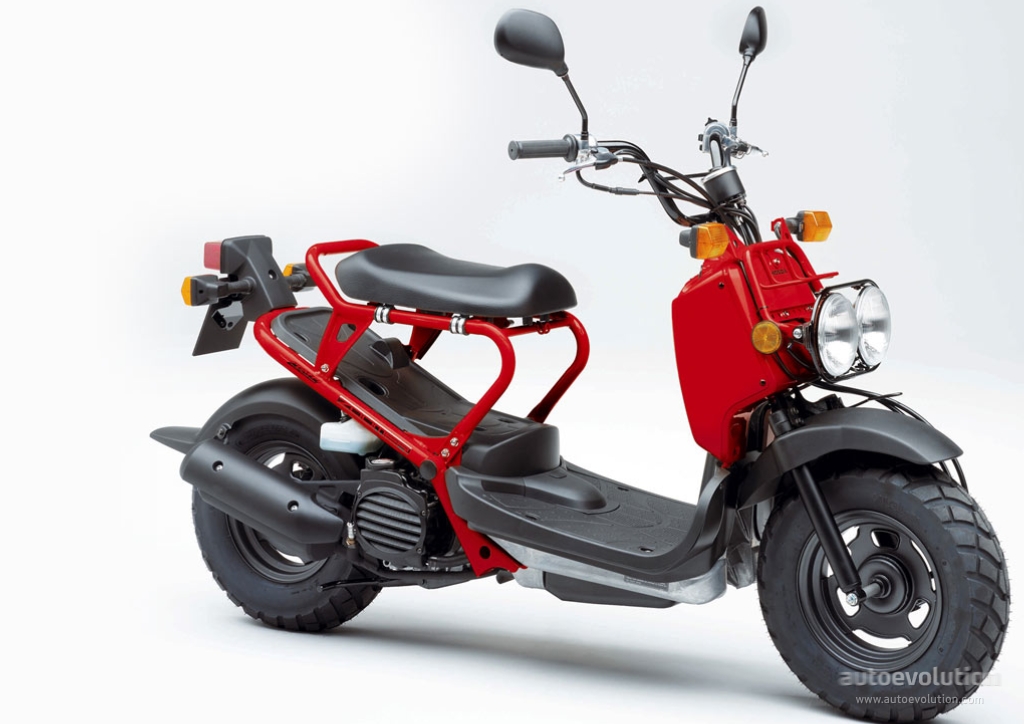

2002 Honda Zoomer Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2002 Honda Zoomer.

Basic Specs

Year2002
MakeHonda
ModelHonda Zoomer
Cost

Engine

Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke38.0 x 44.0 mm (1.5 x 1.7 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox
Final Drive
Clutch
Driveline

Performance

Horespower4.90 HP (3.6 kW)
Torque4.50 Nm (0.5 kgf-m or 3.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity5.00 litres (1.32 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height735 mm (28.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,025 mm (40.4 inches)
Total Length1,860 mm (73.2 inches)
Total Width735 mm (28.9 inches)
Ground Clearance145 mm (5.7 inches)
Wheelbase1,265 mm (49.8 inches)
Dry Weight79.0 kg (174.2 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/90-10 54J
Rear Tire/Tyre130/90-10 59J
Front BrakesExpanding brake
Front Brake Diameter
Rear BrakesExpanding brake
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda Zoomer. This Scooter model is powered by a Single cylinder, four-stroke engine with 49.00 ccm (2.99 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 4.90 HP (3.6 kW) horsepower and 4.50 Nm (0.5 kgf-m or 3.3 ft.lbs) torque. According to our records engine heat of the Honda Zoomer is moderated by Liquid. You'll need to get familiar with the transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/90-10 54J and the rear is 130/90-10 59J . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake front brakes and Expanding brake rear brakes. The Honda Zoomer was launched in 2002, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
