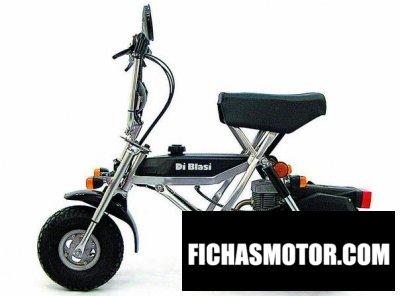

2003 Di Blasi F7 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2003 Di Blasi F7.

Basic Specs

Year2003
MakeDi Blasi
ModelDi Blasi F7
CostUS$ 2475. Prices depend on country, taxes, accessories, etc.

Engine

Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression8.7:1
Bore/Stroke39.0 x 41.8 mm (1.5 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionKick start
ExhaustSingle stainless steel pipe
Lubrication
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveBelt
ClutchAuto expansion
Driveline

Performance

Horespower1.15 HP (0.8 kW)
Torque2.56 Nm (0.3 kgf-m or 1.9 ft.lbs)
Top Speed45.0 km/h (28.0 mph)

Fuel Economy & Polution

Fuel Consumption2.35 litres/100 km (42.6 km/l or 100.09 mpg)
Fuel Capacity3.00 litres (0.79 gallons)
Emissions54.5 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeAluminum folding frame
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height610 mm (24.0 inches)
Total Length1,280 mm (50.4 inches)
Total Width575 mm (22.6 inches)
Ground Clearance
Wheelbase935 mm (36.8 inches)
Dry Weight29.8 kg (65.7 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesExpanding brake (drum brake)
Front Brake Diameter70 mm (2.8 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter70 mm (2.8 inches)
Wheels

Comments

It appears you're interested in specifications for the Di Blasi F7. This Scooter model is powered by a Single cylinder, two-stroke engine with 49.00 ccm (2.99 cubic inches) of actual displacement before 8.7:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 1.15 HP (0.8 kW) horsepower and 2.56 Nm (0.3 kgf-m or 1.9 ft.lbs) torque. According to our records engine heat of the Di Blasi F7 is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, Aluminum folding frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Di Blasi F7 was launched in 2003, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Includes special carrying bag. These are the only folding collapsible gas powered mopeds on the market. They have endless uses and are fun and easy bikes to ride. Look here at the Diblasi website for videos detailing how they work!! http://www.diblasi.com/ and also http://www.foldingmotorbike.com/
