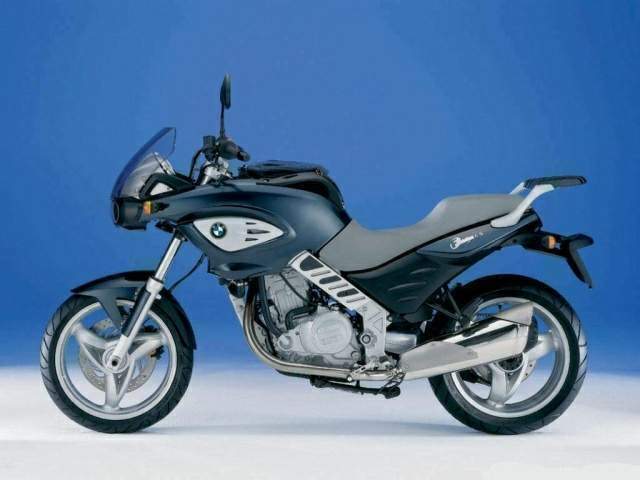

2004 BMW F 650 CS Scarver Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2004 BMW F 650 CS Scarver.

Basic Specs

Year2004
MakeBMW
ModelBMW F 650 CS Scarver
Cost

Engine

Displacement652.00 ccm (39.79 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke100.0 x 83.0 mm (3.9 x 3.3 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveBelt
Clutch
Driveline

Performance

Horespower50.00 HP (36.5 kW)
Torque62.00 Nm (6.3 kgf-m or 45.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.30 litres (4.57 gallons)
Emissions

Chassis

Frame TypeBridge-type steel section frame with bolted-on rear section
Rake27.9°
Trail
Front SuspensionTelescopic fork, stanchion diameter 41 mm, fork stabiliser
Front Travel
Rear SuspensionBox-section steel section dual swing arm, central spring strut action via lever system, spring pre-load hydraulically adjustable to continuously variable levels by means of handwheel, rebound damping adjustable
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height915 mm (36.0 inches)
Total Length2,142 mm (84.3 inches)
Total Width1,158 mm (45.6 inches)
Ground Clearance
Wheelbase1,479 mm (58.2 inches)
Dry Weight187.0 kg (412.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/90-19
Rear Tire/Tyre130/80-17
Front BrakesSingle disc
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW F 650 CS Scarver. This Allround model is powered by a Single cylinder, four-stroke engine with 652.00 ccm (39.79 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection allowing this machine to produce its 50.00 HP (36.5 kW) horsepower and 62.00 Nm (6.3 kgf-m or 45.7 ft.lbs) torque. According to our records engine heat of the BMW F 650 CS Scarver is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 100/90-19 and the rear is 130/80-17 . The entire package is supported by the frame, Bridge-type steel section frame with bolted-on rear section. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The BMW F 650 CS Scarver was launched in 2004, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
