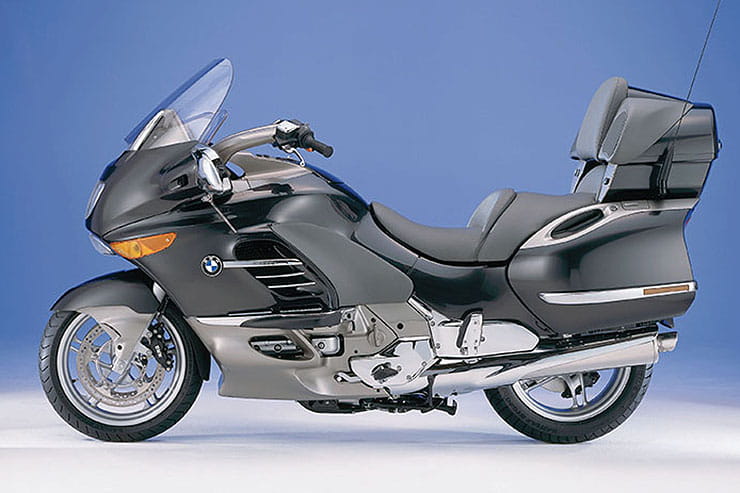

2004 BMW K 1200 LT Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2004 BMW K 1200 LT.

Basic Specs

Year2004
MakeBMW
ModelBMW K 1200 LT
Cost

Engine

Displacement1171.00 ccm (71.45 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke70.5 x 75.0 mm (2.8 x 3.0 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower116.00 HP (84.7 kW)
Torque120.00 Nm (12.2 kgf-m or 88.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.30 litres/100 km (23.3 km/l or 54.70 mpg)
Fuel Capacity24.00 litres (6.34 gallons)
Emissions99.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeBridging frame consisting of die-cast aluminium, engine decoupled from vibration through bearings.
Rake
Trail
Front SuspensionBMW Motorrad Telelever; stanchion diameter 35 mm, central strut.
Front Travel102 mm (4.0 inches)
Rear SuspensionDie-cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut, spring pre-load hydraulically adjustable to continuously variable levels by means of handwheel.
Rear Travel130 mm (5.1 inches)
Seat
Seat Height770 mm (30.3 inches) If adjustable, lowest setting.
Alt. Seat Height800 mm (31.5 inches) If adjustable, highest setting.
Total Height1,395 mm (54.9 inches)
Total Length2,505 mm (98.6 inches)
Total Width920 mm (36.2 inches)
Ground Clearance
Wheelbase1,637 mm (64.4 inches)
Dry Weight353.5 kg (779.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre160/70-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter285 mm (11.2 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW K 1200 LT. This Touring model is powered by a Single cylinder, four-stroke engine with 1171.00 ccm (71.45 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection allowing this machine to produce its 116.00 HP (84.7 kW) horsepower and 120.00 Nm (12.2 kgf-m or 88.5 ft.lbs) torque. According to our records engine heat of the BMW K 1200 LT is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 160/70-ZR17 . The entire package is supported by the frame, Bridging frame consisting of die-cast aluminium, engine decoupled from vibration through bearings.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The BMW K 1200 LT was launched in 2004, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
