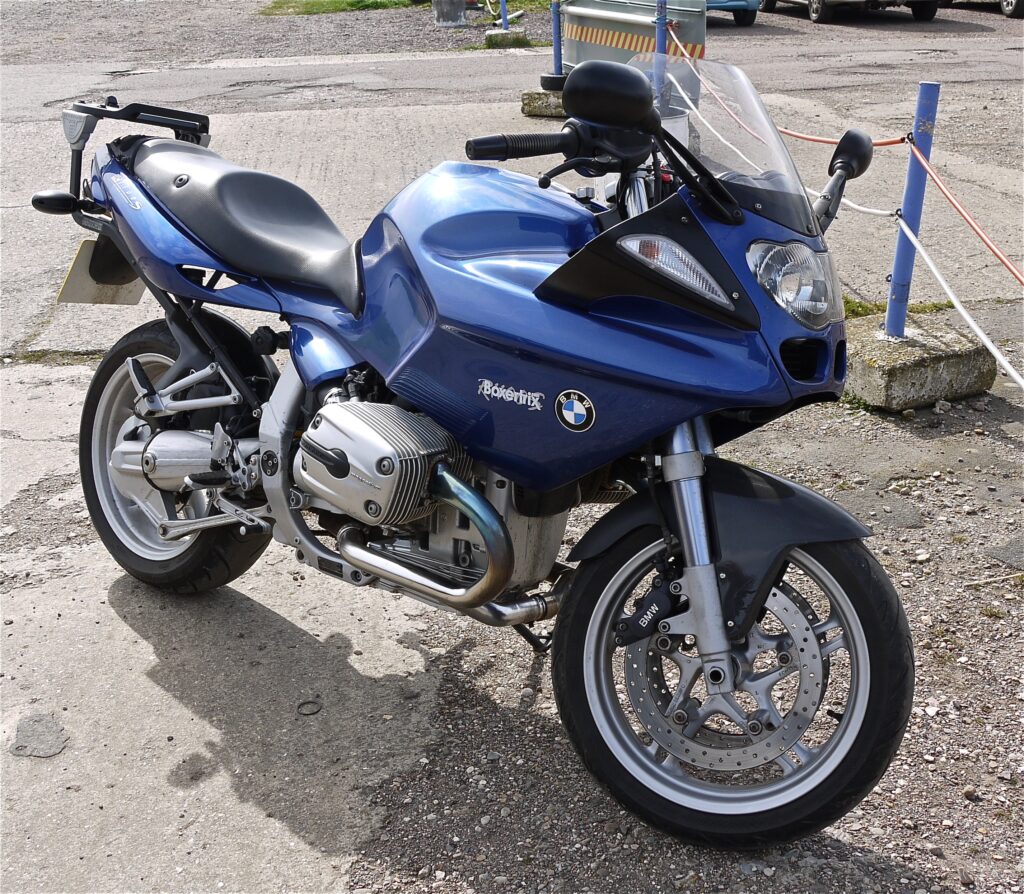

2004 BMW R 1100 S Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2004 BMW R 1100 S.

Basic Specs

Year2004
MakeBMW
ModelBMW R 1100 S
TypeSport
Cost

Engine

Displacement1085.00 ccm (66.21 cubic inches)
Type
DetailsTwo cylinder boxer, four-stroke
Max RPM
Compression11.3:1
Bore/Stroke99.0 x 70.5 mm (3.9 x 2.8 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower96.55 HP (70.5 kW)
Torque97.00 Nm (9.9 kgf-m or 71.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.00 litres (4.76 gallons)
Emissions

Chassis

Frame TypeThree-section composite frame consisting of front and rear section, load bearing engine
Rake
Trail
Front SuspensionBMW Motorrad Telelever; stanchion diameter 35 mm, central spring strut, rebound damping adjustable
Front Travel110 mm (4.3 inches)
Rear SuspensionDie-cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut, spring pre-load hydraulically adjustable to continuously variable levels by means of handwheel, rebound damping adjustable
Rear Travel130 mm (5.1 inches)
Seat
Seat Height860 mm (33.9 inches) If adjustable, lowest setting.
Alt. Seat Height845 mm (33.3 inches) If adjustable, highest setting.
Total Height1,160 mm (45.7 inches)
Total Length2,180 mm (85.8 inches)
Total Width895 mm (35.2 inches)
Ground Clearance
Wheelbase1,478 mm (58.2 inches)
Dry Weight208.0 kg (458.6 pounds)
Wet Weight229.0 kg (504.9 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesDouble disc
Rear Brake Diameter276 mm (10.9 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW R 1100 S. This Sport model is powered by a Two cylinder boxer, four-stroke engine with 1085.00 ccm (66.21 cubic inches) of actual displacement before 11.3:1 compression. Fueling is metered via Injection allowing this machine to produce its 96.55 HP (70.5 kW) horsepower and 97.00 Nm (9.9 kgf-m or 71.5 ft.lbs) torque. According to our records engine heat of the BMW R 1100 S is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Three-section composite frame consisting of front and rear section, load bearing engine. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Double disc rear brakes. The BMW R 1100 S was launched in 2004, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
