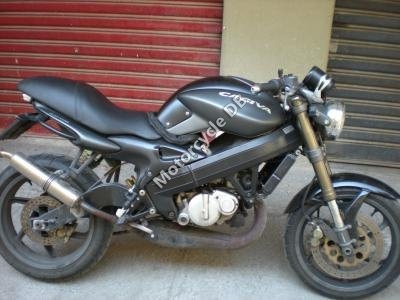

These are the known mechanical and performance specifications for your 2004 Cagiva Raptor 125.
Basic Specs
Engine
Displacement124.63 ccm (7.60 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression7.4:1
Bore/Stroke56.0 x 50.6 mm (2.2 x 2.0 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity12.50 litres (3.30 gallons)
Emissions
Chassis
Frame TypeAluminium double extruded beam with cast head pipe and rear plates
Rake
Trail
Front SuspensionMarzocchi upside-down fully adjustable hydraulic fork
Front Travel120 mm (4.7 inches)
Rear SuspensionSachs progressive with hydraulic shock absorber
Rear Travel140 mm (5.5 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance175 mm (6.9 inches)
Wheelbase
Dry Weight125.0 kg (275.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre110/70-17
Rear Tire/Tyre150/60-17
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter230 mm (9.1 inches)
Wheels
Comments
