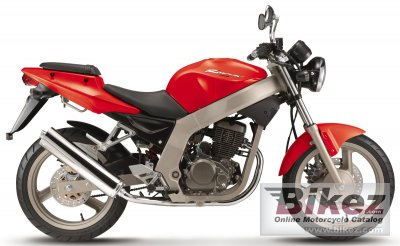

2004 Daelim Roadwin Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2004 Daelim Roadwin.

Basic Specs

Year2004
MakeDaelim
ModelDaelim Roadwin
Cost

Engine

Displacement124.10 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke56.5 x 49.5 mm (2.2 x 1.9 inches)
Valves/Cylinder4
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox
Final DriveChain
Clutch
Driveline

Performance

Horespower11.60 HP (8.5 kW)
Torque
Top Speed110.0 km/h (68.4 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity16.00 litres (4.23 gallons)
Emissions

Chassis

Frame TypeDouble cradle
Rake
Trail
Front SuspensionTelescopic
Front Travel
Rear SuspensionSwing arm
Rear Travel
Seat
Seat Height755 mm (29.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,040 mm (40.9 inches)
Total Length2,010 mm (79.1 inches)
Total Width740 mm (29.1 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1,380 mm (54.3 inches)
Dry Weight135.0 kg (297.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/70-17
Rear Tire/Tyre140/60-17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Daelim Roadwin. This Naked bike model is powered by a Single cylinder, four-stroke engine with 124.10 ccm (7.57 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 11.60 HP (8.5 kW) horsepower and torque. According to our records engine heat of the Daelim Roadwin is moderated by Air. You'll need to get familiar with the transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/70-17 and the rear is 140/60-17 . The entire package is supported by the frame, Double cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Daelim Roadwin was launched in 2004, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
