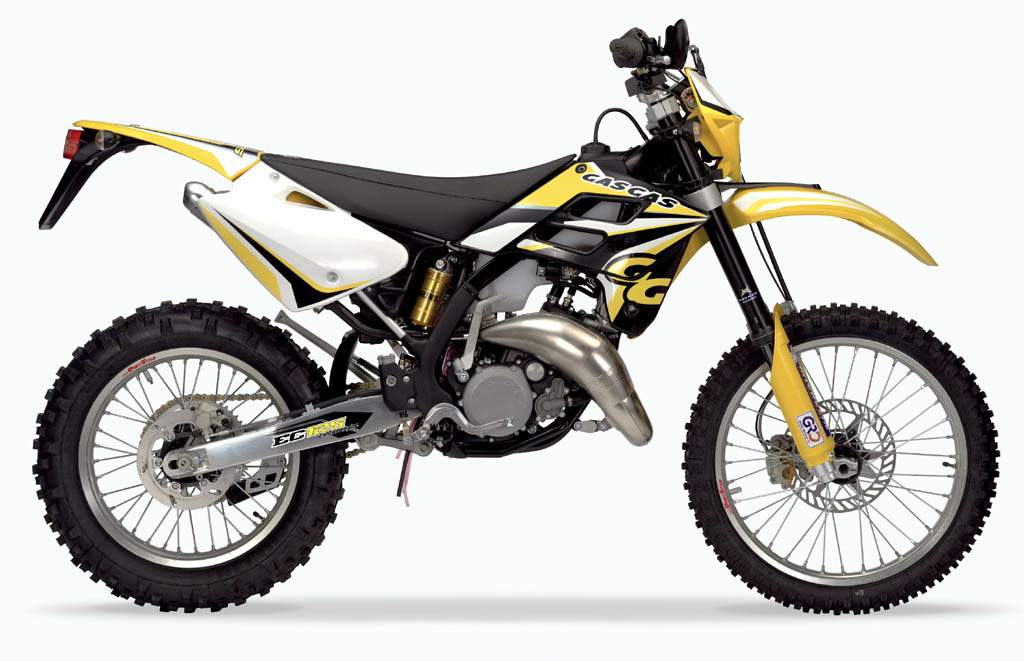

These are the known mechanical and performance specifications for your 2004 GAS GAS EC 125.
Basic Specs
Engine
Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke54.0 x 54.5 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity9.50 litres (2.51 gallons)
Emissions
Chassis
Frame TypeDeltabox type, made of rectangular section cromoly tube
Rake
Trail
Front SuspensionMarzocchi telehydrailc fork, 45 mm
Front Travel295 mm (11.6 inches)
Rear SuspensionOhlns progressive system
Rear Travel320 mm (12.6 inches)
Seat
Seat Height940 mm (37.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance340 mm (13.4 inches)
Wheelbase1,475 mm (58.1 inches)
Dry Weight101.0 kg (222.7 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre140/80-18
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
