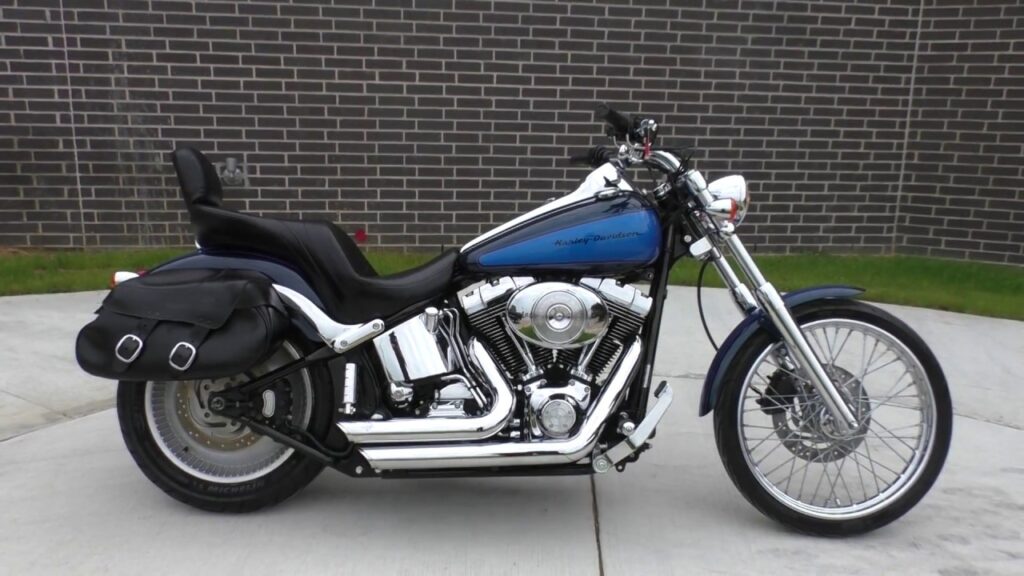

These are the known mechanical and performance specifications for your 2004 Harley-Davidson FXSTDI Softail Deuce.
Basic Specs
Engine
Displacement1449.00 ccm (88.42 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.8:1
Bore/Stroke95.3 x 101.6 mm (3.8 x 4.0 inches)
Valves/Cylinder2
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingAir
Performance
Horespower
Torque102.00 Nm (10.4 kgf-m or 75.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.90 litres (4.99 gallons)
Emissions
Chassis
Frame Type
Rake32.0°
Trail127 mm (5.0 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height660 mm (26.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,424 mm (95.4 inches)
Total Width
Ground Clearance142 mm (5.6 inches)
Wheelbase1,690 mm (66.5 inches)
Dry Weight292.0 kg (643.7 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre160/70-17
Front BrakesSingle disc
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc
Rear Brake Diameter292 mm (11.5 inches)
Wheels
Comments
Black powder-coated engine with chrome covers; stretched tank; chrome front forks; chrome risers with low-rise handlebars; chrome fender supports with hidden hardware; full-length chrome tank console; wire-laced front wheel, 432 mm disc rear wheel; Badlander style seat; 160mm wide rear tyre
