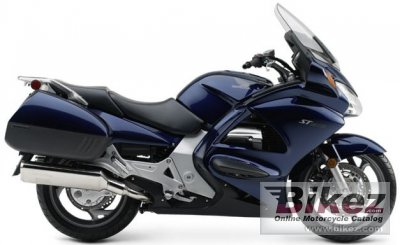

2004 Honda ST 1300 ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2004 Honda ST 1300 ABS.

Basic Specs

Year2004
MakeHonda
ModelHonda ST 1300 ABS
CostUS$ 14499. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1261.00 ccm (76.95 cubic inches)
Type
DetailsV4, four-stroke
Max RPM
Compression10.8:1
Bore/Stroke78.0 x 66.0 mm (3.1 x 2.6 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower118.00 HP (86.1 kW)
Torque117.00 Nm (11.9 kgf-m or 86.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity29.14 litres (7.70 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension45.0mm HMAS cartridge fork.
Front Travel117 mm (4.6 inches)
Rear SuspensionHMAS gas-charged single shock with five-position spring-preload adjustability;
Rear Travel122 mm (4.8 inches)
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height935 mm (36.8 inches)
Total Length2,282 mm (89.8 inches)
Total Width1,330 mm (52.4 inches)
Ground Clearance
Wheelbase1,491 mm (58.7 inches)
Dry Weight
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR18
Rear Tire/Tyre170/60-ZR17
Front BrakesDouble disc
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter316 mm (12.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda ST 1300 ABS. This Sport touring model is powered by a V4, four-stroke engine with 1261.00 ccm (76.95 cubic inches) of actual displacement before 10.8:1 compression. Fueling is metered via Injection allowing this machine to produce its 118.00 HP (86.1 kW) horsepower and 117.00 Nm (11.9 kgf-m or 86.3 ft.lbs) torque. According to our records engine heat of the Honda ST 1300 ABS is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR18 and the rear is 170/60-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Honda ST 1300 ABS was launched in 2004, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
