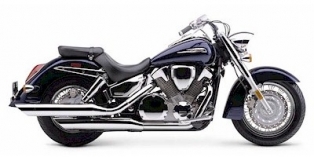

These are the known mechanical and performance specifications for your 2004 Honda VTX 1300 Retro.
Basic Specs
Year2004
MakeHonda
ModelHonda VTX 1300 Retro
TypeCustom / cruiser
CostUS$ 9199. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1312.00 ccm (80.06 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke89.5 x 104.3 mm (3.5 x 4.1 inches)
Valves/Cylinder3
Fueling
Ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.16 litres (4.80 gallons)
Emissions
Chassis
Frame Type
Rake32.0°
Trail
Front Suspension41mm fork
Front Travel130 mm (5.1 inches)
Rear SuspensionDual shocks with five-position spring-preload adjustability.
Rear Travel94 mm (3.7 inches)
Seat
Seat Height686 mm (27.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,669 mm (65.7 inches)
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre140/80-17
Rear Tire/Tyre170/80-15
Front BrakesSingle disc
Front Brake Diameter336 mm (13.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter296 mm (11.7 inches)
Wheels
Comments
