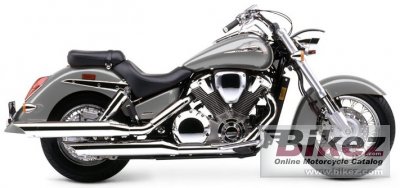

2004 Honda VTX 1800 Retro Spoke Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2004 Honda VTX 1800 Retro Spoke.

Basic Specs

Year2004
MakeHonda
ModelHonda VTX 1800 Retro Spoke
CostUS$ 13199. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1795.00 ccm (109.53 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke101.0 x 112.0 mm (4.0 x 4.4 inches)
Valves/Cylinder3
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.06 litres (5.30 gallons)
Emissions

Chassis

Frame Type
Rake32.0°
Trail
Front Suspension45mm inverted fork
Front Travel130 mm (5.1 inches)
Rear SuspensionDual shocks with five-position spring-preload adjustability
Rear Travel99 mm (3.9 inches)
Seat
Seat Height693 mm (27.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,715 mm (67.5 inches)
Dry Weight
Wet Weight

Wheels & Brakes

Front Tire/Tyre150/80-17
Rear Tire/Tyre170/80-15
Front BrakesDouble disc
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter316 mm (12.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda VTX 1800 Retro Spoke. This Custom / cruiser model is powered by a V2, four-stroke engine with 1795.00 ccm (109.53 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda VTX 1800 Retro Spoke is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 150/80-17 and the rear is 170/80-15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Honda VTX 1800 Retro Spoke was launched in 2004, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
