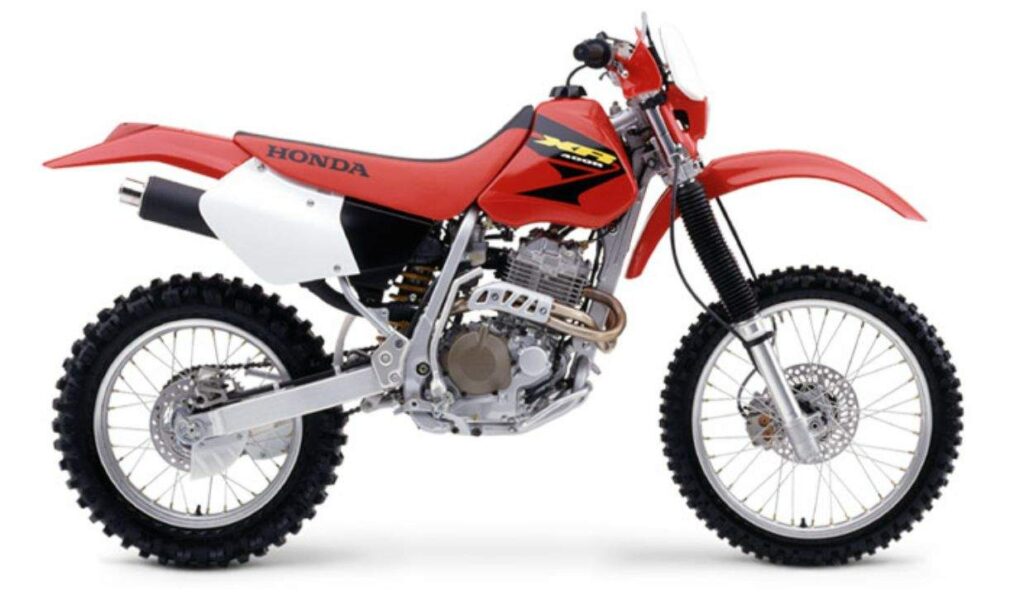

These are the known mechanical and performance specifications for your 2004 Honda XR 400 R.
Basic Specs
Year2004
MakeHonda
ModelHonda XR 400 R
TypeEnduro / offroad
CostUS$ 5299. Prices depend on country, taxes, accessories, etc.
Engine
Displacement397.00 ccm (24.22 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.3:1
Bore/Stroke85.0 x 70.0 mm (3.3 x 2.8 inches)
Valves/Cylinder4
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity9.46 litres (2.50 gallons)
Emissions
Chassis
Frame Type
Rake25.3°
Trail94 mm (3.7 inches)
Front Suspension43mm leading-axle Showa cartridge fork with 18-position compression and 12-position rebound-damping adjustability
Front Travel279 mm (11.0 inches)
Rear SuspensionPro-Link Showa single-shock with spring-preload, 16-position compression and 16-position rebound-damping adjustability.
Rear Travel300 mm (11.8 inches)
Seat
Seat Height930 mm (36.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,425 mm (56.1 inches)
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre80/90-21
Rear Tire/Tyre110/90-18
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
Model id XR400R.
