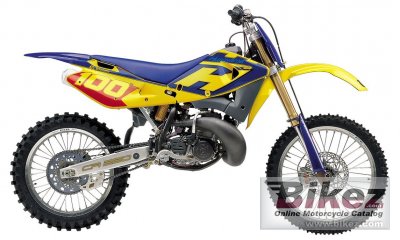

These are the known mechanical and performance specifications for your 2004 Husqvarna CR 250.
Basic Specs
Engine
Displacement249.30 ccm (15.21 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression8.4:1
Bore/Stroke66.4 x 72.0 mm (2.6 x 2.8 inches)
Valves/Cylinder1
Fueling
Ignition
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity8.50 litres (2.25 gallons)
Emissions
Chassis
Frame TypeSteel singel tube cradle. Rear frame in light alloy.
Rake
Trail
Front SuspensionMarzocchi upside-down telescopic hydraulic adjustable fork
Front Travel
Rear SuspensionProgressive soft-dump with single hydraulic
Rear Travel
Seat
Seat Height980 mm (38.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2 mm (0.1 inches)
Total Width
Ground Clearance355 mm (14.0 inches)
Wheelbase1,470 mm (57.9 inches)
Dry Weight
Wet Weight101.5 kg (223.8 pounds)
Wheels & Brakes
Front Tire/Tyre80/100-21
Rear Tire/Tyre110/90-19
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
