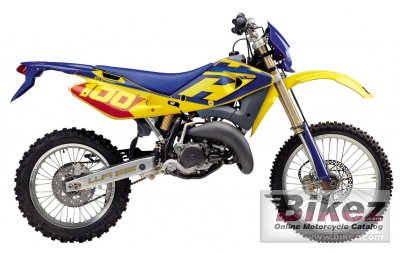

These are the known mechanical and performance specifications for your 2004 Husqvarna WR 125.
Basic Specs

Engine
Displacement124.82 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression8.8:1
Bore/Stroke54.0 x 54.5 mm (2.1 x 2.1 inches)
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity8.50 litres (2.25 gallons)
Emissions
Chassis
Frame TypeSteel singel tube cradle. Rear frame in light alloy.
Rake
Trail
Front SuspensionMarzocchi upside-down telescopic hydraulic adjustable fork
Front Travel300 mm (11.8 inches)
Rear SuspensionProgressive soft-dump with single hydraulic
Rear Travel320 mm (12.6 inches)
Seat
Seat Height970 mm (38.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,087 mm (82.2 inches)
Total Width
Ground Clearance360 mm (14.2 inches)
Wheelbase1,465 mm (57.7 inches)
Dry Weight
Wet Weight99.5 kg (219.4 pounds)
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre120/90-18
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
