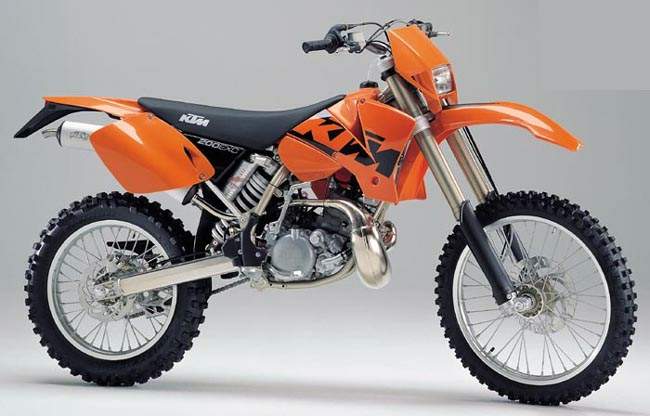

2004 KTM 200 EXC Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2004 KTM 200 EXC.

Basic Specs

Year2004
MakeKTM
ModelKTM 200 EXC
Cost

Engine

Displacement193.00 ccm (11.78 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression11.0:1
Bore/Stroke64.0 x 60.0 mm (2.5 x 2.4 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.00 litres (2.38 gallons)
Emissions

Chassis

Frame TypeChromium molybdenum
Rake
Trail63 mm (2.5 inches)
Front SuspensionWP-USD 48 MA
Front Travel
Rear SuspensionWP-PDS-shock absorber
Rear Travel
Seat
Seat Height925 mm (36.4 inches) If adjustable, lowest setting.
Alt. Seat Height675 mm (26.6 inches) If adjustable, highest setting.
Total Height
Total Length
Total Width
Ground Clearance390 mm (15.4 inches)
Wheelbase1,471 mm (57.9 inches)
Dry Weight102.4 kg (225.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter216 mm (8.5 inches)
Rear BrakesSingle disc
Rear Brake Diameter260 mm (10.2 inches)
Wheels

Comments

It appears you're interested in specifications for the KTM 200 EXC. This Enduro / offroad model is powered by a Single cylinder, two-stroke engine with 193.00 ccm (11.78 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Carburettor allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 200 EXC is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, Chromium molybdenum. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The KTM 200 EXC was launched in 2004, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
