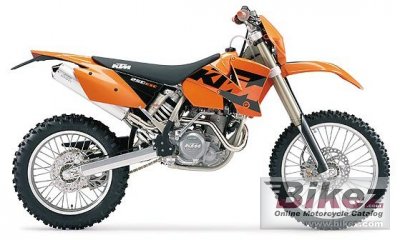

2004 KTM 250 EXC Racing Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2004 KTM 250 EXC Racing.

Basic Specs

Year2004
MakeKTM
ModelKTM 250 EXC Racing
Cost

Engine

Displacement249.60 ccm (15.23 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke75.0 x 56.6 mm (3.0 x 2.2 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.50 litres (2.25 gallons)
Emissions

Chassis

Frame TypeChromium molybdenum
Rake
Trail64 mm (2.5 inches)
Front SuspensionWP-USD 48 MA
Front Travel
Rear SuspensionWP-PDS-shock absorber
Rear Travel
Seat
Seat Height925 mm (36.4 inches) If adjustable, lowest setting.
Alt. Seat Height675 mm (26.6 inches) If adjustable, highest setting.
Total Height
Total Length
Total Width
Ground Clearance385 mm (15.2 inches)
Wheelbase1,481 mm (58.3 inches)
Dry Weight115.7 kg (255.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter216 mm (8.5 inches)
Rear BrakesSingle disc
Rear Brake Diameter260 mm (10.2 inches)
Wheels

Comments

It appears you're interested in specifications for the KTM 250 EXC Racing. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 249.60 ccm (15.23 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Carburettor allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 250 EXC Racing is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, Chromium molybdenum. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The KTM 250 EXC Racing was launched in 2004, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
