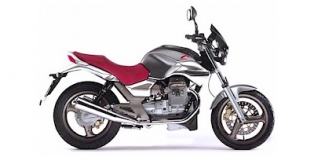

2004 Moto Guzzi Breva V 750 I.E. Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2004 Moto Guzzi Breva V 750 I.E..

Basic Specs

Year2004
MakeMoto Guzzi
ModelMoto Guzzi Breva V 750 I.E.
Cost

Engine

Displacement744.00 ccm (45.40 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke80.0 x 74.0 mm (3.1 x 2.9 inches)
Valves/Cylinder2
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower44.92 HP (32.8 kW)
Torque74.17 Nm (7.6 kgf-m or 54.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.00 litres (4.76 gallons)
Emissions

Chassis

Frame TypeDetachable tubular duplex cradle
Rake28.0°
Trail109 mm (4.3 inches)
Front SuspensionMarzocchi 40 mm hydraulic telescopic fork
Front Travel130 mm (5.1 inches)
Rear SuspensionSwing arm in light cast alloy with two dampers, spring adjustable for pre-load and rebound
Rear Travel118 mm (4.6 inches)
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,170 mm (85.4 inches)
Total Width720 mm (28.3 inches)
Ground Clearance176 mm (6.9 inches)
Wheelbase1,449 mm (57.0 inches)
Dry Weight182.0 kg (401.2 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/70-17
Rear Tire/Tyre130/80-17
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter260 mm (10.2 inches)
Wheels

Comments

It appears you're interested in specifications for the Moto Guzzi Breva V 750 I.E.. This Naked bike model is powered by a V2, four-stroke engine with 744.00 ccm (45.40 cubic inches) of actual displacement before 9.6:1 compression. Fueling is metered via Injection allowing this machine to produce its 44.92 HP (32.8 kW) horsepower and 74.17 Nm (7.6 kgf-m or 54.7 ft.lbs) torque. According to our records engine heat of the Moto Guzzi Breva V 750 I.E. is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 110/70-17 and the rear is 130/80-17 . The entire package is supported by the frame, Detachable tubular duplex cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Moto Guzzi Breva V 750 I.E. was launched in 2004, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Breva V 750 IE -- Italian styling and the legendary 90º V-Twin in a lighter, more affordable package. It's the Moto Guzzi you've been waiting for. Available in Red, Black, Silver.
