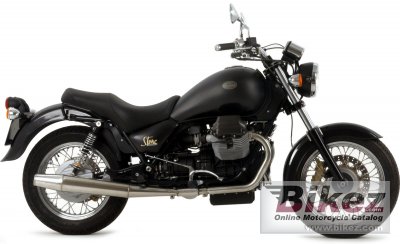

2004 Moto Guzzi California Stone Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2004 Moto Guzzi California Stone.

Basic Specs

Year2004
MakeMoto Guzzi
ModelMoto Guzzi California Stone
Cost

Engine

Displacement1064.00 ccm (64.93 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke92.0 x 80.0 mm (3.6 x 3.1 inches)
Valves/Cylinder2
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower73.76 HP (53.8 kW)
Torque88.50 Nm (9.0 kgf-m or 65.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.00 litres (5.02 gallons)
Emissions

Chassis

Frame TypeDetachable tubular duplex cradle
Rake29.0°
Trail116 mm (4.6 inches)
Front SuspensionMarzocchi 45 mm hydraulic telescopic fork
Front Travel140 mm (5.5 inches)
Rear SuspensionSwing arm with 2 hydraulic shock absorbers with preload adjustment
Rear Travel89 mm (3.5 inches)
Seat
Seat Height760 mm (29.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,150 mm (45.3 inches)
Total Length2,355 mm (92.7 inches)
Total Width850 mm (33.5 inches)
Ground Clearance190 mm (7.5 inches)
Wheelbase1,560 mm (61.4 inches)
Dry Weight246.0 kg (542.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/90-VB18
Rear Tire/Tyre140/80-VB17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter282 mm (11.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Moto Guzzi California Stone. This Custom / cruiser model is powered by a V2, four-stroke engine with 1064.00 ccm (64.93 cubic inches) of actual displacement before 9.8:1 compression. Fueling is metered via Injection allowing this machine to produce its 73.76 HP (53.8 kW) horsepower and 88.50 Nm (9.0 kgf-m or 65.3 ft.lbs) torque. According to our records engine heat of the Moto Guzzi California Stone is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 110/90-VB18 and the rear is 140/80-VB17 . The entire package is supported by the frame, Detachable tubular duplex cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Moto Guzzi California Stone was launched in 2004, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

California Stone -- Trim clean lines, classic minimalist design, the temperament of a genuine Moto Guzzi. An updated version of the unmistakable 90º V-Twin with hydraulic self-adjusting valves. Brembo Gold Series brakes. A modern expression of the Moto Guzzi spirit. Available in Red, Black or Silver
