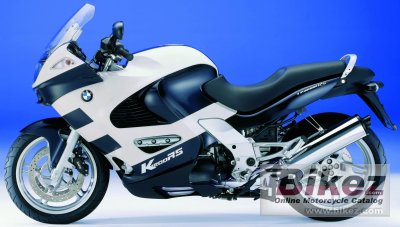

2005 BMW K 1200 RS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 BMW K 1200 RS.

Basic Specs

Year2005
MakeBMW
ModelBMW K 1200 RS
Cost

Engine

Displacement1171.00 ccm (71.45 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke70.5 x 75.0 mm (2.8 x 3.0 inches)
Valves/Cylinder4
FuelingInjection. Electronic intake pipe injection / BMW engine management, Motronic MA 2.4 with overrun fuel cut-off
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchSingle-disc dry clutch, hydraulically operated
Driveline

Performance

Horespower128.73 HP (94.0 kW)
Torque117.00 Nm (11.9 kgf-m or 86.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Fuel Capacity20.50 litres (5.42 gallons)
Emissions113.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeBridging frame consisting of die-cast aluminium, engine decoupled from vibration through bearings
Rake27.3°
Trail124 mm (4.9 inches)
Front SuspensionBMW Motorrad Telelever
Front Travel35 mm (1.4 inches)
Rear SuspensionDie-cast aluminium single-sided swinging arm with BMW Motorrad Paralever
Rear Travel135 mm (5.3 inches)
Seat
Seat Height770 mm (30.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,200 mm (47.2 inches)
Total Length2,250 mm (88.6 inches)
Total Width850 mm (33.5 inches)
Ground Clearance
Wheelbase1,550 mm (61.0 inches)
Dry Weight266.0 kg (586.4 pounds)
Wet Weight285.0 kg (628.3 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter285 mm (11.2 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW K 1200 RS. This Sport touring model is powered by a Single cylinder, four-stroke engine with 1171.00 ccm (71.45 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection. Electronic intake pipe injection / BMW engine management, Motronic MA 2.4 with overrun fuel cut-off allowing this machine to produce its 128.73 HP (94.0 kW) horsepower and 117.00 Nm (11.9 kgf-m or 86.3 ft.lbs) torque. According to our records engine heat of the BMW K 1200 RS is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Bridging frame consisting of die-cast aluminium, engine decoupled from vibration through bearings. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The BMW K 1200 RS was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

ABS brakes.
