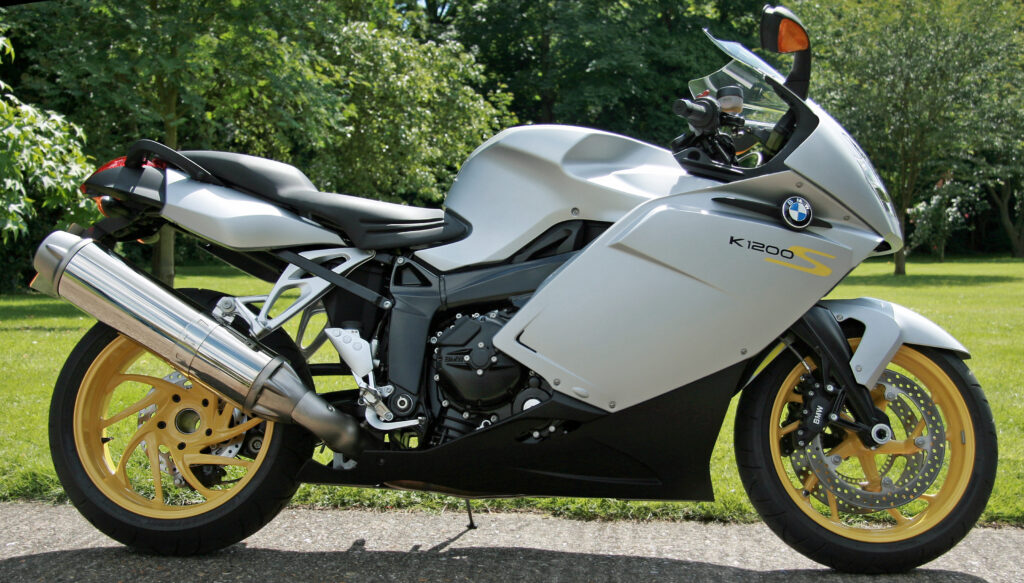

2005 BMW K 1200 S Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 BMW K 1200 S.

Basic Specs

Year2005
MakeBMW
ModelBMW K 1200 S
TypeSport
Cost

Engine

Displacement1157.00 ccm (70.60 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression13.0:1
Bore/Stroke79.0 x 59.0 mm (3.1 x 2.3 inches)
Valves/Cylinder4
FuelingInjection. Electronic intake pipe injection / digital engine management including knock sensor (BMS-K)
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchMultiple-disc clutch in oil bath, hydraulically operated
Driveline

Performance

Horespower164.94 HP (120.4 kW)
Torque130.00 Nm (13.3 kgf-m or 95.9 ft.lbs)
Top Speed200.0 km/h (124.3 mph)

Fuel Economy & Polution

Fuel Consumption4.70 litres/100 km (21.3 km/l or 50.05 mpg)
Fuel Capacity19.00 litres (5.02 gallons)
Emissions109.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeBridging frame, die-cast aluminium, load bearing engine
Rake29.0°
Trail112 mm (4.4 inches)
Front SuspensionBMW Motorrad Duolever
Front Travel115 mm (4.5 inches)
Rear SuspensionDie-cast aluminium single-sided swinging arm with BMW Motorrad Paralever
Rear Travel135 mm (5.3 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,211 mm (47.7 inches)
Total Length2,182 mm (85.9 inches)
Total Width905 mm (35.6 inches)
Ground Clearance
Wheelbase1,571 mm (61.9 inches)
Dry Weight226.5 kg (499.3 pounds)
Wet Weight248.0 kg (546.7 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/50-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter265 mm (10.4 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW K 1200 S. This Sport model is powered by a In-line four, four-stroke engine with 1157.00 ccm (70.60 cubic inches) of actual displacement before 13.0:1 compression. Fueling is metered via Injection. Electronic intake pipe injection / digital engine management including knock sensor (BMS-K) allowing this machine to produce its 164.94 HP (120.4 kW) horsepower and 130.00 Nm (13.3 kgf-m or 95.9 ft.lbs) torque. According to our records engine heat of the BMW K 1200 S is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/50-ZR17 . The entire package is supported by the frame, Bridging frame, die-cast aluminium, load bearing engine. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The BMW K 1200 S was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

ABS brakes.
