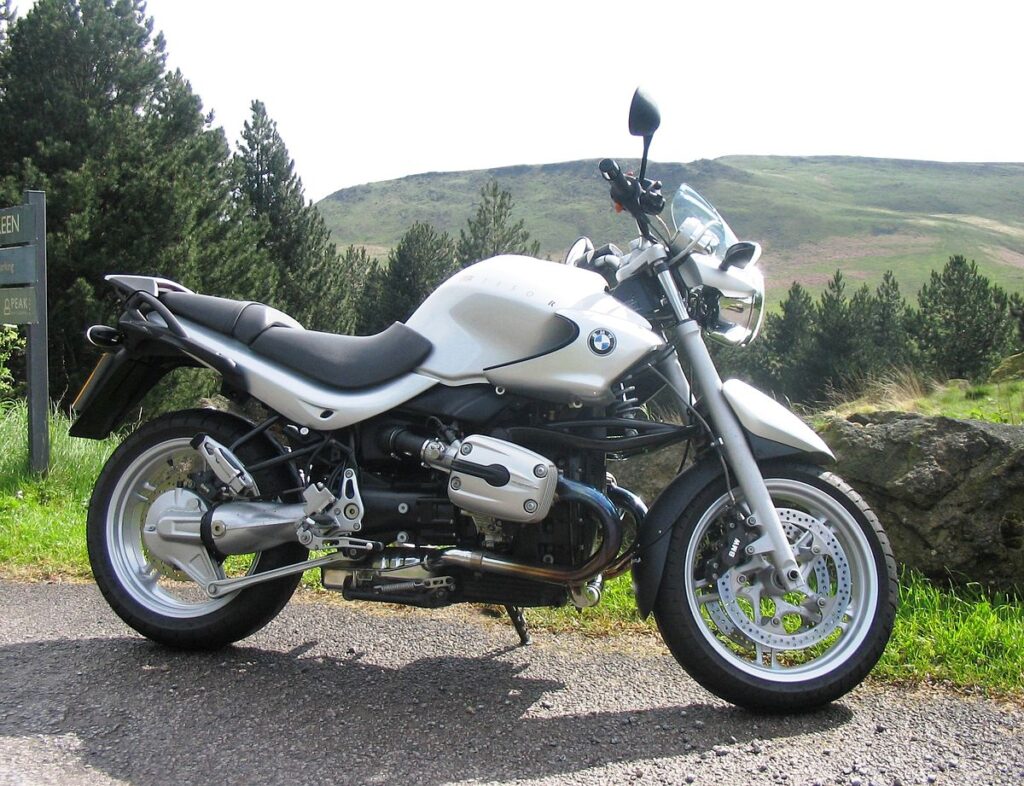

2005 BMW R 1150 R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 BMW R 1150 R.

Basic Specs

Year2005
MakeBMW
ModelBMW R 1150 R
Cost

Engine

Displacement1130.00 ccm (68.95 cubic inches)
Type
DetailsTwo cylinder boxer, four-stroke
Max RPM
Compression10.3:1
Bore/Stroke101.0 x 70.5 mm (4.0 x 2.8 inches)
Valves/Cylinder4
FuelingInjection. Electronic intake pipe injection/digital engine management: Bosch Motronic MA 2.4 with overrun fuel cut-off, twin spark ignition
Ignition
Exhaust
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchSingle-disc dry clutch, hydraulically operated
Driveline

Performance

Horespower83.81 HP (61.2 kW)
Torque98.00 Nm (10.0 kgf-m or 72.3 ft.lbs)
Top Speed197.0 km/h (122.4 mph)

Fuel Economy & Polution

Fuel Consumption4.60 litres/100 km (21.7 km/l or 51.13 mpg)
Fuel Capacity20.50 litres (5.42 gallons)
Emissions106.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Typethree-section composite frame consisting of front and rear section, load bearing engine.
Rake28.1°
Trail127 mm (5.0 inches)
Front SuspensionBMW Motorrad Telelever
Front Travel35 mm (1.4 inches)
Rear SuspensionDie-cast aluminium single-sided swinging arm with BMW Motorrad Paralever
Rear Travel135 mm (5.3 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,220 mm (48.0 inches)
Total Length2,170 mm (85.4 inches)
Total Width940 mm (37.0 inches)
Ground Clearance
Wheelbase1,487 mm (58.5 inches)
Dry Weight218.0 kg (480.6 pounds)
Wet Weight238.0 kg (524.7 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre170/60-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesDouble disc
Rear Brake Diameter276 mm (10.9 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW R 1150 R. This Naked bike model is powered by a Two cylinder boxer, four-stroke engine with 1130.00 ccm (68.95 cubic inches) of actual displacement before 10.3:1 compression. Fueling is metered via Injection. Electronic intake pipe injection/digital engine management: Bosch Motronic MA 2.4 with overrun fuel cut-off, twin spark ignition allowing this machine to produce its 83.81 HP (61.2 kW) horsepower and 98.00 Nm (10.0 kgf-m or 72.3 ft.lbs) torque. According to our records engine heat of the BMW R 1150 R is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 170/60-ZR17 . The entire package is supported by the frame, three-section composite frame consisting of front and rear section, load bearing engine.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Double disc rear brakes. The BMW R 1150 R was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

ABS brakes.
