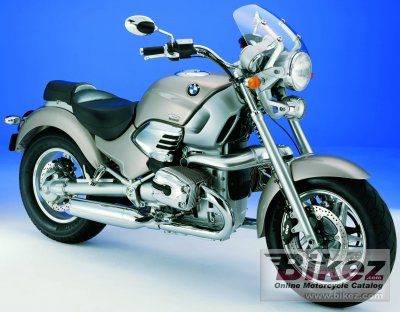

2005 BMW R 1200 C Montauk Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 BMW R 1200 C Montauk.

Basic Specs

Year2005
MakeBMW
ModelBMW R 1200 C Montauk
Cost

Engine

Displacement1170.00 ccm (71.39 cubic inches)
Type
DetailsTwo cylinder boxer, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke101.0 x 73.0 mm (4.0 x 2.9 inches)
Valves/Cylinder4
FuelingInjection. Electronic intake pipe injection/digital engine management: Bosch Motronic MA 2.4 with overrun fuel cut-off, twin spark ignition
Ignition
Exhaust
Lubrication
CoolingOil & air

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchSingle-disc dry clutch, hydraulically operated
Driveline

Performance

Horespower60.34 HP (44.0 kW)
Torque98.00 Nm (10.0 kgf-m or 72.3 ft.lbs)
Top Speed168.0 km/h (104.4 mph)

Fuel Economy & Polution

Fuel Consumption4.60 litres/100 km (21.7 km/l or 51.13 mpg)
Fuel Capacity17.50 litres (4.62 gallons)
Emissions106.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeThree-section composite frame consisting of front and rear section, load bearing engine.
Rake33.5°
Trail184 mm (7.2 inches)
Front SuspensionBMW Motorrad Telelever
Front Travel35 mm (1.4 inches)
Rear SuspensionDie-cast steel single-sided swinging arm with BMW Motorrad Monolever
Rear Travel135 mm (5.3 inches)
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,340 mm (52.8 inches)
Total Length2,370 mm (93.3 inches)
Total Width1,120 mm (44.1 inches)
Ground Clearance
Wheelbase1,641 mm (64.6 inches)
Dry Weight245.0 kg (540.1 pounds)
Wet Weight265.0 kg (584.2 pounds)

Wheels & Brakes

Front Tire/Tyre150/80-VR16
Rear Tire/Tyre170/80-VR15
Front BrakesDouble disc
Front Brake Diameter305 mm (12.0 inches)
Rear BrakesSingle disc
Rear Brake Diameter285 mm (11.2 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW R 1200 C Montauk. This Custom / cruiser model is powered by a Two cylinder boxer, four-stroke engine with 1170.00 ccm (71.39 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. Electronic intake pipe injection/digital engine management: Bosch Motronic MA 2.4 with overrun fuel cut-off, twin spark ignition allowing this machine to produce its 60.34 HP (44.0 kW) horsepower and 98.00 Nm (10.0 kgf-m or 72.3 ft.lbs) torque. According to our records engine heat of the BMW R 1200 C Montauk is moderated by Oil & air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 150/80-VR16 and the rear is 170/80-VR15 . The entire package is supported by the frame, Three-section composite frame consisting of front and rear section, load bearing engine.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The BMW R 1200 C Montauk was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
