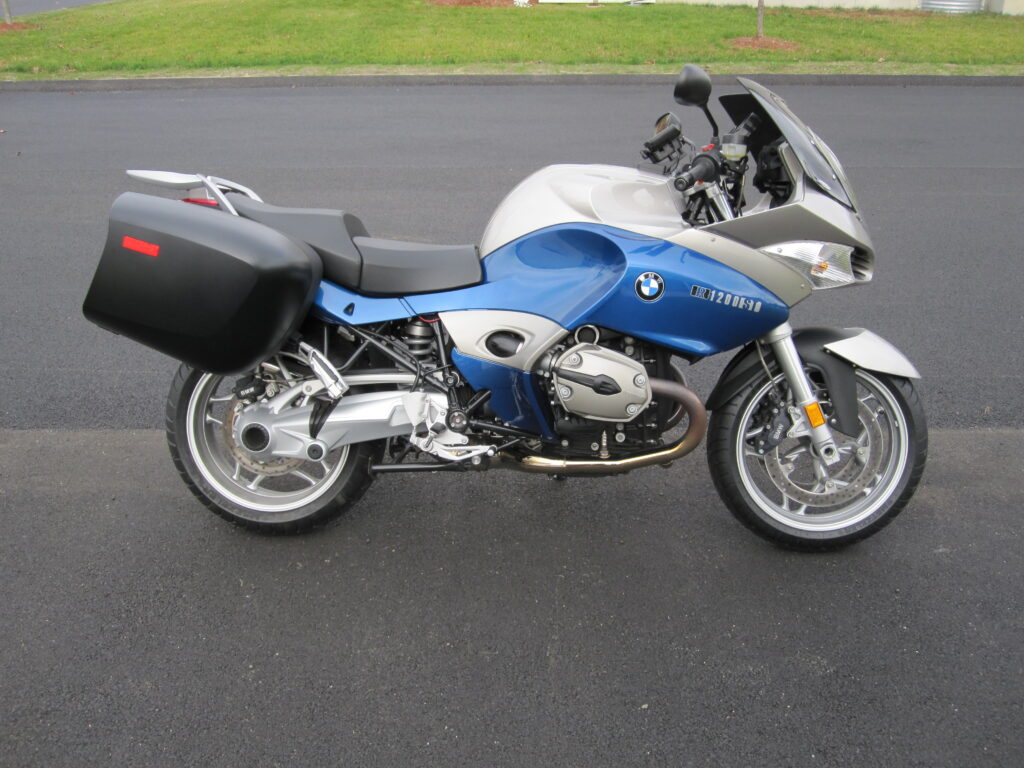

2005 BMW R 1200 ST Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 BMW R 1200 ST.

Basic Specs

Year2005
MakeBMW
ModelBMW R 1200 ST
CostUS$ 14990. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1170.00 ccm (71.39 cubic inches)
Type
DetailsTwo cylinder boxer, four-stroke
Max RPM8000
Compression12.0:1
Bore/Stroke101.0 x 73.0 mm (4.0 x 2.9 inches)
Valves/Cylinder4
FuelingInjection. BMS-K
Ignition
Exhauststainless 3 cat single muffler
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
Clutchdry
Driveline

Performance

Horespower110.00 HP (80.3 kW)
Torque115.00 Nm (11.7 kgf-m or 84.8 ft.lbs)
Top Speed233.4 km/h (145.0 mph)

Fuel Economy & Polution

Fuel Consumption3.90 litres/100 km (25.6 km/l or 60.31 mpg)
Fuel Capacity21.00 litres (5.55 gallons)
Emissions90.5 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake
Trail
Front SuspensionTelelever
Front Travel110 mm (4.3 inches)
Rear SuspensionParalever
Rear Travel140 mm (5.5 inches)
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height830 mm (32.7 inches) If adjustable, highest setting.
Total Height
Total Length2,165 mm (85.2 inches)
Total Width890 mm (35.0 inches)
Ground Clearance
Wheelbase1,502 mm (59.1 inches)
Dry Weight205.0 kg (451.9 pounds)
Wet Weight229.0 kg (504.9 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR 17
Rear Tire/Tyre180/55-ZR 17
Front BrakesDouble disc. 4 piston optional ABS
Front Brake Diameter320 mm (12.6 inches)
Rear Brakes
Rear Brake Diameter265 mm (10.4 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW R 1200 ST. This Sport touring model is powered by a Two cylinder boxer, four-stroke engine with 1170.00 ccm (71.39 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Injection. BMS-K allowing this machine to produce its 110.00 HP (80.3 kW) horsepower and 115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) torque. According to our records engine heat of the BMW R 1200 ST is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR 17 and the rear is 180/55-ZR 17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4 piston optional ABS front brakes and rear brakes. The BMW R 1200 ST was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
