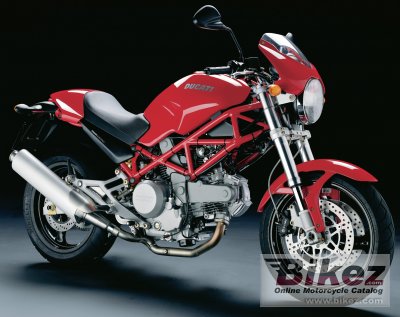

2005 Ducati Monster 620 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 Ducati Monster 620.

Basic Specs

Year2005
MakeDucati
ModelDucati Monster 620
Cost

Engine

Displacement618.00 ccm (37.71 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke80.0 x 61.5 mm (3.1 x 2.4 inches)
Valves/Cylinder
FuelingInjection. Marelli electronic fuel injection, 45 mm throttle body
Ignition
Exhaust
Lubrication
Cooling

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchAPTC wet multiplate with hydraulic control
Driveline

Performance

Horespower83.43 HP (60.9 kW)
Torque57.00 Nm (5.8 kgf-m or 42.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.00 litres (3.70 gallons)
Emissions

Chassis

Frame TypeTubular steel trellis
Rake24.0°
Trail
Front Suspension43 mm upside-down fork
Front Travel130 mm (5.1 inches)
Rear SuspensionProgressive linkage with adjustable Sachs monoshock
Rear Travel148 mm (5.8 inches)
Seat
Seat Height770 mm (30.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,440 mm (56.7 inches)
Dry Weight168.0 kg (370.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/60-ZR17
Rear Tire/Tyre160/60-ZR17
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter245 mm (9.6 inches)
Wheels

Comments

It appears you're interested in specifications for the Ducati Monster 620. This Naked bike model is powered by a Twin, four-stroke engine with 618.00 ccm (37.71 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection. Marelli electronic fuel injection, 45 mm throttle body allowing this machine to produce its 83.43 HP (60.9 kW) horsepower and 57.00 Nm (5.8 kgf-m or 42.0 ft.lbs) torque. According to our records engine heat of the Ducati Monster 620 is moderated by . You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/60-ZR17 and the rear is 160/60-ZR17 . The entire package is supported by the frame, Tubular steel trellis. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Ducati Monster 620 was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
