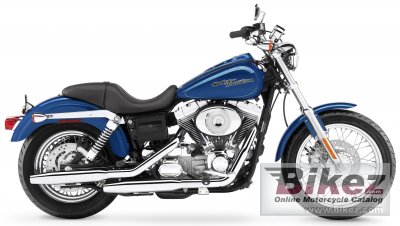

These are the known mechanical and performance specifications for your 2005 Harley-Davidson FXDCI Dyna Super Glide Custom.
Basic Specs


Year2005
MakeHarley-Davidson
ModelHarley-Davidson FXDCI Dyna Super Glide Custom
TypeCustom / cruiser
Cost
Engine
Displacement1449.00 ccm (88.42 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.8:1
Bore/Stroke95.3 x 101.6 mm (3.8 x 4.0 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI )
Ignition
ExhaustStaggered shorty duals
Lubrication
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveBelt
ClutchMulti-plate clutch with diaphragm spring in oil bath
Driveline
Performance
Horespower
Torque102.00 Nm (10.4 kgf-m or 75.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.80 litres (4.70 gallons)
Emissions
Chassis
Frame Type
Rake28.0°
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height673 mm (26.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,300 mm (90.6 inches)
Total Width
Ground Clearance137 mm (5.4 inches)
Wheelbase1,595 mm (62.8 inches)
Dry Weight290.0 kg (639.3 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre100/90-19
Rear Tire/Tyre150/80-16
Front BrakesDouble disc
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc
Rear Brake Diameter292 mm (11.5 inches)
Wheels
