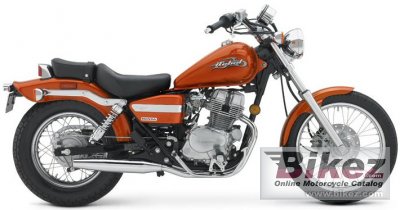

These are the known mechanical and performance specifications for your 2005 Honda CMX 250 Rebel.
Basic Specs
Year2005
MakeHonda
ModelHonda CMX 250 Rebel
TypeCustom / cruiser
CostUS$ 2099. Prices depend on country, taxes, accessories, etc.
Engine
Displacement234.00 ccm (14.28 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke53.0 x 53.0 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Single 26mm diaphragm-type CV
IgnitionCDI
Exhaust
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity9.84 litres (2.60 gallons)
Emissions
Chassis
Frame TypeFront Suspension
Rake32.7°
Trail161 mm (6.3 inches)
Front Suspension33mm fork
Front Travel117 mm (4.6 inches)
Rear SuspensionDual shocks with five-position spring-preload adjustability
Rear Travel74 mm (2.9 inches)
Seat
Seat Height676 mm (26.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,450 mm (57.1 inches)
Dry Weight139.0 kg (306.4 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-18
Rear Tire/Tyre130/90-15
Front BrakesSingle disc. 2-piston calipers
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
Model ID: CB250
