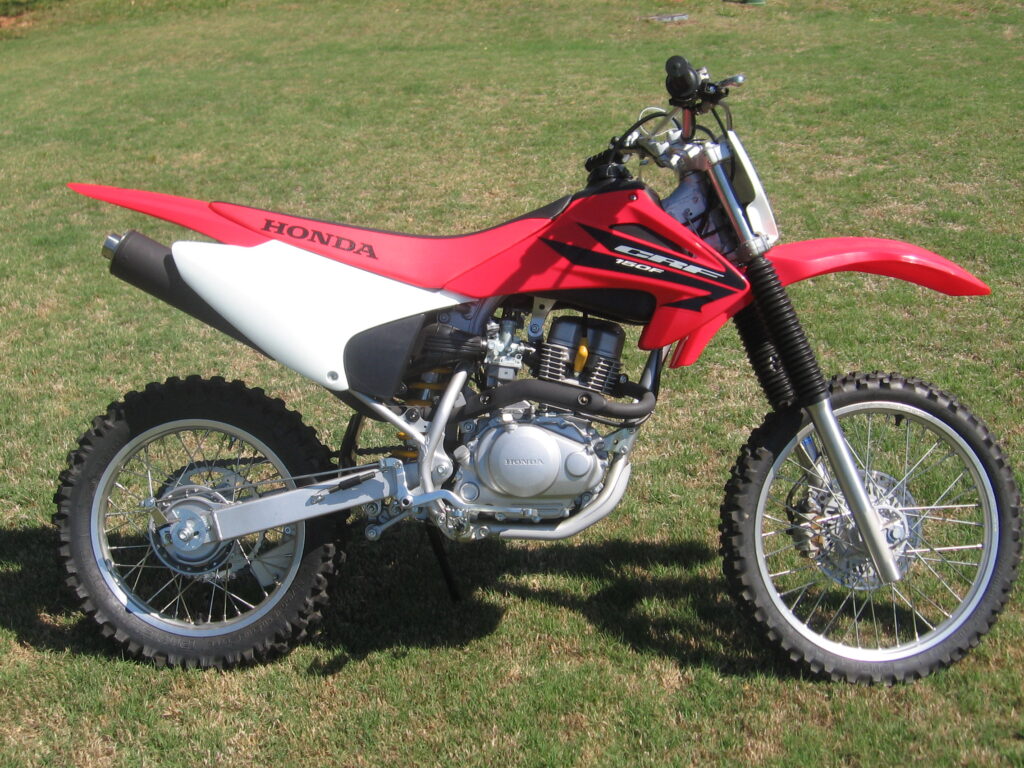

2005 Honda CRF 150 F Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 Honda CRF 150 F.

Basic Specs

Year2005
MakeHonda
ModelHonda CRF 150 F
CostUS$ 2999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement156.80 ccm (9.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke63.5 x 49.5 mm (2.5 x 1.9 inches)
Valves/Cylinder
Fueling
IgnitionCDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.32 litres (2.20 gallons)
Emissions

Chassis

Frame Type
Rake26.7°
Trail87 mm (3.4 inches)
Front Suspension35mm leading-axle Showa fork
Front Travel231 mm (9.1 inches)
Rear SuspensionPro-Link Showa single-shock
Rear Travel224 mm (8.8 inches)
Seat
Seat Height826 mm (32.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance254 mm (10.0 inches)
Wheelbase1,326 mm (52.2 inches)
Dry Weight98.0 kg (216.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre70/70-19
Rear Tire/Tyre90/90-16
Front BrakesSingle disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda CRF 150 F. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 156.80 ccm (9.57 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda CRF 150 F is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 70/70-19 and the rear is 90/90-16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Honda CRF 150 F was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CRF150F
