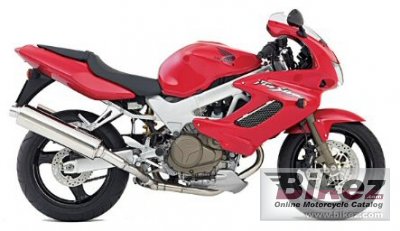

2005 Honda VTR 1000 F Super Hawk Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 Honda VTR 1000 F Super Hawk.

Basic Specs

Year2005
MakeHonda
ModelHonda VTR 1000 F Super Hawk
TypeSport
CostUS$ 8999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement996.00 ccm (60.78 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke98.0 x 66.0 mm (3.9 x 2.6 inches)
Valves/Cylinder
FuelingCarburettor. Two 48.0mm slanted flat-slide CV
IgnitionComputer-controlled digital transistorized with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity15.89 litres (4.20 gallons)
Emissions

Chassis

Frame Type
Rake24.9°
Trail97 mm (3.8 inches)
Front Suspension41.0mm HMAS cartridge fork with spring-preload and rebound-damping adjustability
Front Travel119 mm (4.7 inches)
Rear SuspensionPro-Link HMAS single shock with spring-preload and rebound-damping adjustability
Rear Travel124 mm (4.9 inches)
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,430 mm (56.3 inches)
Dry Weight193.2 kg (426.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Full-floating. 4-piston calipers.
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc. 1-piston calipers
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda VTR 1000 F Super Hawk. This Sport model is powered by a V2, four-stroke engine with 996.00 ccm (60.78 cubic inches) of actual displacement before 9.4:1 compression. Fueling is metered via Carburettor. Two 48.0mm slanted flat-slide CV allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda VTR 1000 F Super Hawk is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Full-floating. 4-piston calipers. front brakes and Single disc. 1-piston calipers rear brakes. The Honda VTR 1000 F Super Hawk was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: VTR1000F
