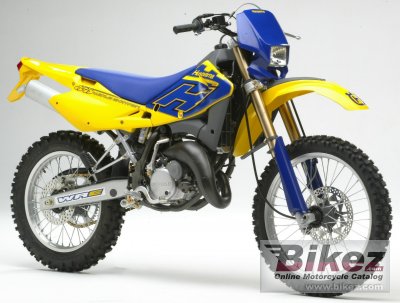

2005 Husqvarna WRE 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 Husqvarna WRE 125.

Basic Specs

Year2005
MakeHusqvarna
ModelHusqvarna WRE 125
Cost

Engine

Displacement124.82 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression12.5:1
Bore/Stroke54.0 x 54.5 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Dell´Ortho PHBH 28 mm
IgnitionAnalogic
Exhaust
LubricationDry sump with two oil pump rotor and cartridge filter
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multiplate type, hydraulic
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.20 litres (2.69 gallons)
Emissions

Chassis

Frame TypeSingle tube cradle, rear frame in light alloy.
Rake
Trail
Front SuspensionUpside-down telescopic hydraulic adjustable fork
Front Travel
Rear SuspensionProgressive ´soft damp´
Rear Travel
Seat
Seat Height935 mm (36.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,290 mm (50.8 inches)
Total Length2,215 mm (87.2 inches)
Total Width820 mm (32.3 inches)
Ground Clearance330 mm (13.0 inches)
Wheelbase1,475 mm (58.1 inches)
Dry Weight
Wet Weight111.1 kg (244.9 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre120/90-18
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Husqvarna WRE 125. This Enduro / offroad model is powered by a Single cylinder, two-stroke engine with 124.82 ccm (7.62 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Carburettor. Dell´Ortho PHBH 28 mm allowing this machine to produce its horsepower and torque. According to our records engine heat of the Husqvarna WRE 125 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 120/90-18 . The entire package is supported by the frame, Single tube cradle, rear frame in light alloy.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Husqvarna WRE 125 was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
